Product Details

Description



Features:

• Resolution                                   : 10 bits
• Differential linearity error            : ±1.0 LSB (max.)
• Maximum conversion rate           : 20 MSPS (min.)
• Supply voltage                            : Single +3.0 V
• Digital in/output voltage             : 3 V CMOS level (tristate)
• Analog input voltage range        : 0 V to AVDD (1.5 V to 2.1 Vp-p)
• Analog input capacitance            : 18 pF (standard)
• Dissipation power                       : 40 mW
• Additional capabilities                 : Power saving function
                                                        tristate output
• Package                                     : 24-pin SSOP


Pinout

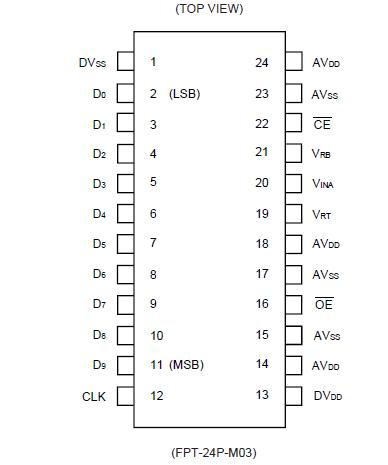

Connection Diagram


Specifications

Parameter Symbol Rating Unit
Min. Max.
Power supply voltage AVDD, DVDD 0.3 +4.0 V
Input voltage (analog/digital) CLK, VINA, VRT,VRB,
CE,OE		 0.3 AVDD + 0.3* V
Output voltage D0 to D9 0.3 DVDD + 0.3* V
Storage temperature Tstg -55 +125 °C
* : Don't exceed 4.0V
WARNING: Semiconductor devices can be permanently damaged by application of stress (voltage, current,
                  temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.


Description

MB40C360 is a high-speed A/D converter using a fast CMOS technology.
