Product Details

Description



Features:

• Resolution : 8 bit
• Linearity error : ±0.2% (standard)
• Differential linearity error : ±0.12% (standard)
• Maximum conversion rate : 30 MSPS (minimum)
• Power supply voltage : +3.0 V (single)
• Digital input voltage range : 3 V CMOS level
• Digital output voltage range : 3 V CMOS level compatible (tristate output)
• Analog input voltage range : 0 to 2.0 V (1.2 to 1.8 Vp-p)
• Analog input capacitance : 15 pF (standard)
• Power dissipation : 50 mW (standard: including reference current)
• Additional features : VRT voltage adjustment amp (VRT = 1.2 to 2.0 V)
   Power saving capacity (also reference current set to OFF: 0.5 mW or less)
   High impedance output
• Package : 24-pin SSOP


Pinout

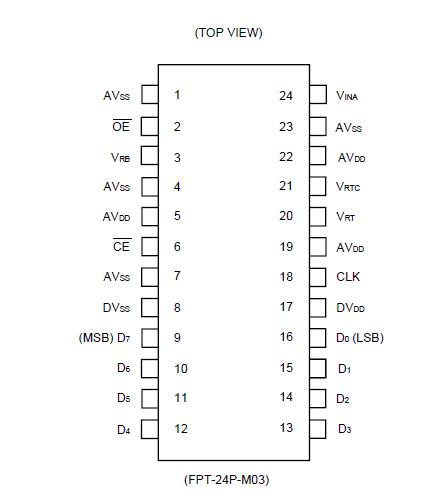

Connection Diagram


Specifications

Parameter Symbol Rating Unit
Min. Max.
Power supply voltage AVDD, DVDD 0.3 +7.0 V
Input voltage (analog/digital) CLK, VINA,
VRTC,VRB		 0.3 AVDD+0.3 V
Output voltage D0 to D7 0.3 DVDD+0.3 V
VRT 0.3 AVDD+0.3 V
Storage temperature Tstg 55 +125 °C
WARNING: Semiconductor devices can be permanently damaged by application of stress (voltage, current,
                  temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.


Description

MB40C238 is a high-speed converter using a fast CMOS technology.
