MB40C218

Features: • Resolution : 8 bit• Linearity error : ±0.2% (standard)• Differential linearity error : ±0.12% (standard)• Maximum conversion rate : 30 MSPS(minimum)• Supply voltage : Amplifier +5.00 ± 0.25 [V]A/D converter +3.00 ± 0.30 [V]• Digital input voltage ran...

product image

MB40C218 Picture
See larger image
SeekIC No. : 004413371 Detail

MB40C218: Features: • Resolution : 8 bit• Linearity error : ±0.2% (standard)• Differential linearity error : ±0.12% (standard)• Maximum conversion rate : 30 MSPS(minimum)• Supply...

MB40C218 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MB40C218
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Resolution : 8 bit
• Linearity error : ±0.2% (standard)
• Differential linearity error : ±0.12% (standard)
• Maximum conversion rate : 30 MSPS(minimum)
• Supply voltage : Amplifier +5.00 ± 0.25 [V]
A/D converter +3.00 ± 0.30 [V]
• Digital input voltage range : TTL compatible
• Digital output voltage range : 3 V CMOS level compatible (tristate output)
• Analog input voltage range : 0 to 1.5 V (1.5 VP-P)
• analog input capacitance : 15 pF (standard)
• Power dissipation : 90 mW (standard: @ AVDD5 = 5.00 V, AVDD3 = DVDD = 3.00 V)
• Additional features : 1:3 gain amp with dual input selector (bandwidth: 20 MHz, inverting amp)
   VRT reference voltage adjustment amp
   Power saving capability
   Digital output test capability
   Analog input offset resistor
• Package : 32-pin plastic QFP

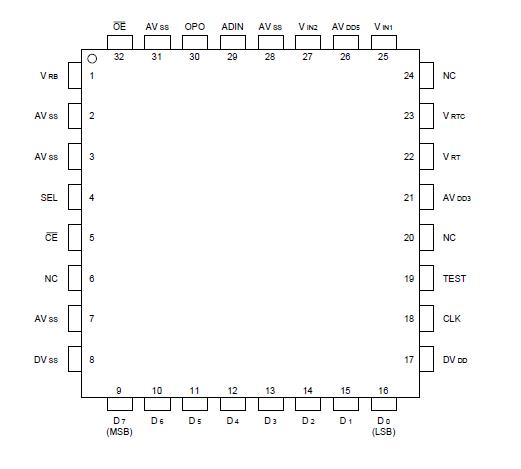

Pinout

Connection Diagram


Specifications

Parameter Symbol Rating Unit
Min. Max.
Power supply voltage AVDD5, AVDD3, DVDD 0.3 +7.0 V
Input/output voltage SEL, CE, OE
CLK, TEST
VRB, VRT, VRTC
ADIN, VIN1, VIN2
OPO		 0.3 AVDD5 + 0.3 V
Digital output voltage D0 to D7 0.3 DVDD + 0.3 V
Storage temperature Tstg 55 +125 °C
Note: Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device.
          In the normal operations, it is recommended to use the device in the recommended conditions; exceeding
          the conditions may affect device reliability.


Description

MB40C218 is a high-speed converter using a fast CMOS technology
