MB40978

Features: • Resolution : 8bits• Linearity : ±0.2% max.• Maximum Conversion Rate : 60MSPS min.• Analog Output Voltage Range : VCC to VCC -1(V)• Digital Input Voltage : TTL Compatible• Single Power Supply Voltage : +5.0V• Power Dissipation : 350mW typ.•...

product image

MB40978 Picture
See larger image
SeekIC No. : 004413369 Detail

MB40978: Features: • Resolution : 8bits• Linearity : ±0.2% max.• Maximum Conversion Rate : 60MSPS min.• Analog Output Voltage Range : VCC to VCC -1(V)• Digital Input Voltage : T...

MB40978 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MB40978
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Resolution : 8bits
• Linearity : ±0.2% max.
• Maximum Conversion Rate : 60MSPS min.
• Analog Output Voltage Range : VCC to VCC -1(V)
• Digital Input Voltage : TTL Compatible
• Single Power Supply Voltage : +5.0V
• Power Dissipation : 350mW typ.
• Package : Plastic DIP Package (Suffix: -P)
   : Plastic Flat Package (Suffix: -PFQ)


Pinout

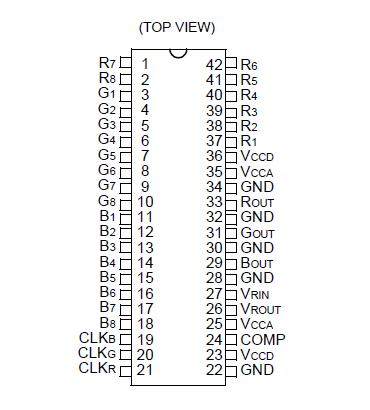

Connection Diagram


Specifications

Parameter Symbol Rating Unit
Power supply voltage VCCA, VCCD 0.5 to +7.0 V
Analog reference voltage VRIN 0.5 to VCCA +7.0 V
Digital input voltage VID 0.5 to +7.0 V
Storage temperature TSTG 55 to +125 °C
Note: Permanent device damage may occur if the above Absolute Maximum Ratings are exceeded. Functional
          operation should be restricted to the conditions as detailed in the operational sections of this data sheet.
          Exposure to absolute maximum rating conditions for extended periods may affect device reliability.


Description

The Fujitsu MB40978 is a 8-bit ultra high speed digital to analog converter for video frequency band fabricated by Fujitsu Advanced Bipolar Technology. Owing to adoption of RGB 3-channel input/output, MB40968V is suitable for digital TV, graphic display etc.
