MB40950

Features: • 10-bit x 3 channels D/A converters• Max. 60 MHz input clock frequency providing 60 MSPS data conversion rate• Linearity error : Max. +/-0.07%• Analog output voltage range : 3V to 5V (2Vp-p level)• Digital input voltage level : TTL level• On-chip refe...

product image

MB40950 Picture
See larger image
SeekIC No. : 004413365 Detail

MB40950: Features: • 10-bit x 3 channels D/A converters• Max. 60 MHz input clock frequency providing 60 MSPS data conversion rate• Linearity error : Max. +/-0.07%• Analog output volta...

MB40950 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MB40950
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 10-bit x 3 channels D/A converters
• Max. 60 MHz input clock frequency providing 60 MSPS data conversion rate
• Linearity error : Max. +/-0.07%
• Analog output voltage range : 3V to 5V (2Vp-p level)
• Digital input voltage level : TTL level
• On-chip reference voltage generator
• Low power consumption :
  Typical 460mW at 2Vp-p analog output voltage
  Typical 350mW at 1Vp-p analog output voltage
• Single +5V power supply
• Operating temperature range : -20°C to +70°C
• Fujitsu's advanced bipolar process
• Package : 48-pin plastic QFP (Suffix : -PF)


Pinout

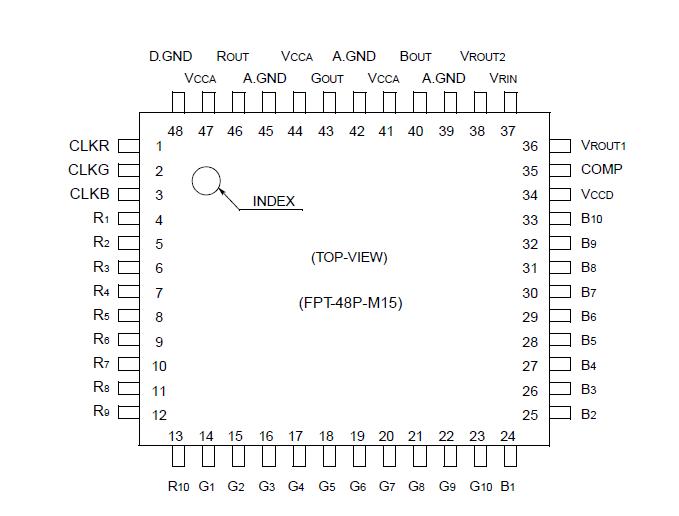

Connection Diagram


Specifications


(A. GND = D. GND = 0V)
Parameter Symbol Rating Unit
Power supply voltage VCCA, VCCD 0.5 to +7.0 V
Power supply voltage difference VCCD VCCA 1.5 V
Analog reference voltage VRIN 0.5 to VCCA +7.0 V
Digital input voltage VID 0.5 to +7.0 V
Storage temperature Tstg 55 to +125 °C
Note: Permanent device damage may occur if the above Absolute Maximum Ratings are exceeded. Functional
operation should be restricted to the conditions as detailed in the operational sections of this data sheet.
Exposure to absolute maximum rating conditions for extended periods may affect device reliability.



Description

The MB40950 is a 10-bit resolution high-speed digital-to-analog converter, designed for video processing applications such as TVsets and VCRS.

The MB40950 has 10-bit resolution 3 channels D/A converters. Digital data are input to the 10-bit digital input ports, and the input digital data are converted into the analog data in minimum 60 Mega sample per seconds (MSPS). The analog output voltage is provided in a range of DC +3V to +5V (2Vp-p level) .

The MB40950 is fabricated by the Fujitsu's advanced bipolar process and housed in a 48-pin plastic QFP.

The MB40950 is designed for video signal processing, and it is suitable for TVS and VCRS applications.
