MB40568

Features: • Resolution: 8 bits• Linearity error: ±0.15 % typ.• Maximum conversion rate: 20 MSPS min.• Analog input voltage: 0 to 3 V in 2 VP-P (clamp circuit) 3 to 5 V (without clamp circuit)• Digital input/output level: TTL Levels• Power supply voltage: +5 V si...

product image

MB40568 Picture
See larger image
SeekIC No. : 004413355 Detail

MB40568: Features: • Resolution: 8 bits• Linearity error: ±0.15 % typ.• Maximum conversion rate: 20 MSPS min.• Analog input voltage: 0 to 3 V in 2 VP-P (clamp circuit) 3 to 5 V (witho...

MB40568 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MB40568
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Resolution: 8 bits
• Linearity error: ±0.15 % typ.
• Maximum conversion rate: 20 MSPS min.
• Analog input voltage: 0 to 3 V in 2 VP-P (clamp circuit)
                                    3 to 5 V (without clamp circuit)
• Digital input/output level: TTL Levels
• Power supply voltage: +5 V single power supply
• Power dissipation: 200 mW typ.


Pinout

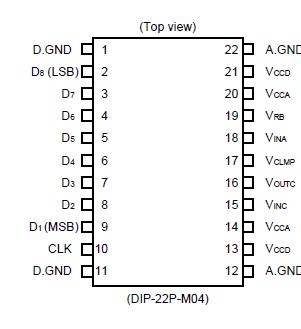

Connection Diagram


Specifications

Parameter Symbol Rating Unit
Power supply voltage VCCA, VCCD 0.5 to 7.0 V
Digital input voltage VIND 0.5 to +7.0 V
Analog input voltage VINA 0.5 to VCC + 0.5 V
Analog reference voltage* VRB 0.5 to VCC + 0.5 V
Clamp circuit input voltage VINC 0.5 to VCC + 0.5 V
Storage temperature Tstg -55 to +125 °C
* : Package : SOP
     VCCA = 2.0 ± 0.1 V, VRB = 2.0 ± 0.1 V
WARNING: Permanent device damage may occur if the above Absolute Maximum Ratings are exceeded.
                  Functional operation should be restricted to the conditions as detailed in the operational sections of
                  this data sheet. Exposure to absolute maximum rating conditions for extended periods may affect
                  device reliability.


Description

The MB40568 is an all-parallel (flash type) A/D converter for 8-bit video applications, and uses high-speed bipolar process technology for low-power consumption and high-speed conversion.

The MB40568 is capable of converting analog signals into digital signals at a rate of DC to 20 MSPS (megasamples per second). Additional circuitry including a clamp circuit and reference voltage generator circuits are build in, to make the MB40568 ideally suited for video signal processing.
