MB40558

Features: • Resolution: 8 bits• Linearity Error: ±0.15%• Maximum Conversion Rate: 40 MSPS (min.)• Digital I/O Level: TTL Compatible• Analog Input Voltage: 3.0V to 5.0V(2Vpp)• Single Power Supply: 5.0V• Power dissipation: 350 mW (typ.)• Further Functi...

product image

MB40558 Picture
See larger image
SeekIC No. : 004413354 Detail

MB40558: Features: • Resolution: 8 bits• Linearity Error: ±0.15%• Maximum Conversion Rate: 40 MSPS (min.)• Digital I/O Level: TTL Compatible• Analog Input Voltage: 3.0V to 5.0V(...

MB40558 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MB40558
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Resolution: 8 bits
• Linearity Error: ±0.15%
• Maximum Conversion Rate: 40 MSPS (min.)
• Digital I/O Level: TTL Compatible
• Analog Input Voltage: 3.0V to 5.0V(2Vpp)
• Single Power Supply: 5.0V
• Power dissipation: 350 mW (typ.)
• Further Function: On Chip Reference Voltage Generator
• Package: Standard 20-pin Plastic DIP Package: Suffix: P
Standard 20-pin Plastic Flat Package: Suffix: PF


Pinout

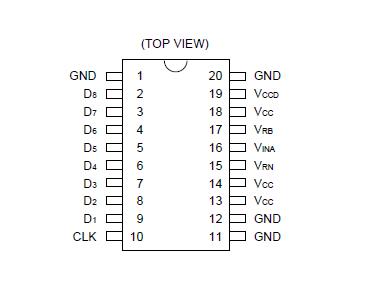

Connection Diagram


Specifications

Parameter Symbol Rating Unit
Power supply voltage VCC 0.5 to +7.0 V
Digital input voltage VIND 0.5 to +7.0 V
Analog input voltage VINA 0.5 to VCC +0.5 V
Storage temperature Tstg 55 to +150 °C
Note: Permanent device damage may occur if the above Absolute Maximum Ratings are exceeded. Functional
         operation should be restricted to the conditions as detailed in the operational sections of this data sheet.
         Exposure to absolute maximum rating conditions for extended periods may affect device reliability.


Description

The Fujitsu MB40558 is a low power ultra-high speed video A/D converter fabricated with Fujitsu Advanced Bipolar Technology. The MB40558 also adopts the fully-parallel comparision technique (flash method) for high speed conversion and can concert wide bandanalog signal such as video signal to digital signal at sampling rate of DC through 40 Mega-samples/sec. Because of such high speed operation, the MB40558 is suitable for digital video applications such as the digital TV, video processing with computer, or ladder signal processing.
