Features:

• Resolution                    A/D: 8 bits
                                                          D/A: 9 bits
• Conversion Rate                             A/D: Max. 20 MSPS
                                                          D/A: Max. 40 MSPS
• Linearity Error                                 A/D: Max. + 0.3%
                                                          D/A: Max. + 0.2%
• On-chip reference voltage generator (resistor divided method) and clamp circuit
• Analog Input Voltage                      3 to 5 V without clamp circuit
                                                          0 to 3 V in 1.95 VP-P clamp circuit
• Analog Output Voltage 3 to 5 V
• Digital Input/Output Interface        TTL Levels
• Power Supply Voltage                     + 5.0 V single power supply
• Power Dissipation                           Typ. 350 mW
• Package Options                             48-pin Plastic Shrink DIP/
                                                          44-pin Plastic QFP Package


Pinout

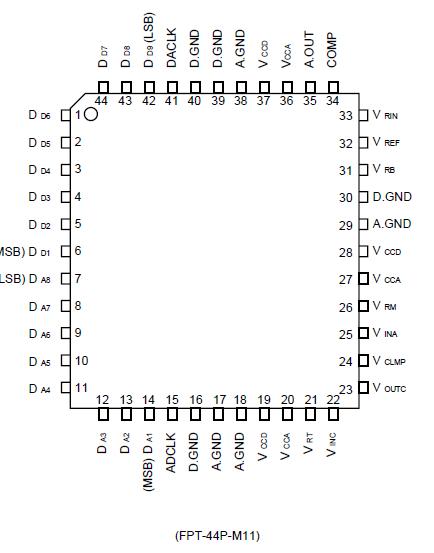

Connection Diagram


Specifications

Parameter Symbol Rating Unit
Power supply voltage VCCA, VCCD 0.5 to 7.0 V
Analog input voltage VINA 0.5 to VCC + 0.5 V
Reference voltage VRT, VRB, VRIN 0.5 to VCC + 0.5 V
Clamp circuit input voltage VINC 0.5 to VCC + 0.5 V
Digital input voltage VIND 0.5 to 7.0 V
Storage temperature TSTG -55 to +125 °C
Note: Permanent device damage may occur if the above Absolute Maximum Ratings are exceeded. Functional
          operation should be restricted to the conditions as detailed in the operational sections of this data sheet.
          Exposure to absolute maximum rating conditions for extended periods may affect device reliability.


Description

The Fujitsu MB40168 and MB40178 are high speed, low power single chip A/D and D/A converters designed for video processing applications. The A/D converter has a resolution of 8 bits while the D/A converter has 9- bit resolution. The MB40168 in Fujitsu's advanced bipolar technology, and housed in a 48-pin plastic shrink DIP or 44-pin plastic QFP package.
