Product Details

Description



Pinout

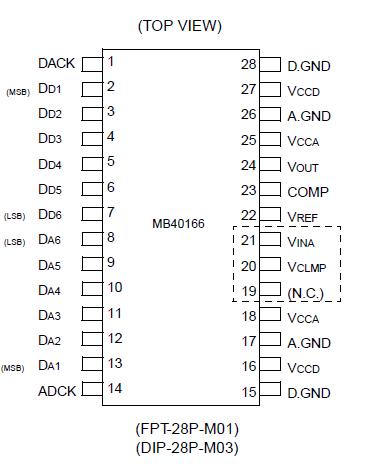

Connection Diagram


Specifications

Rating Symbol Value Unit
Power Supply Voltage VCCA, VCCD -0.5 to +7.0 V
Digital Input Voltage VIND -0.5 to +7.0 V
Analog Input Voltage VINA -0.5 to VCCA +0.5 V
Storage Temperature TSTG -55 to +125 °C
NOTE: Permanent device damage may occur if the above Absolute Maximum
           Ratings are exceeded. Functional operation should be restricted to the
           conditions as detailed in the operational sections of this data sheet.
           Exposure to absolute maximum rating conditions for extended periods
           may affect device reliability.


Description

The clamp circuit contained in MB40166/MB40176 is a peak detector type, in which the top of the sync of the composite sync signal is clamped.

Clamp voltage of MB40166 is common to the reference voltage (0.8 x VCC) of A/D and D/A circuits.
