MB39A110

Features: • Supports for down-conversion and up/down Zeta conversion (CH1 to CH3)• Supports for up-conversion and up/down Sepic conversion (CH4)• For synchronous rectification (CH1, CH2)• Power supply voltage range : 2.5 V to 11 V• Reference voltage : 2.0 V ± 1 %̶...

product image

MB39A110 Picture
See larger image
SeekIC No. : 004413330 Detail

MB39A110: Features: • Supports for down-conversion and up/down Zeta conversion (CH1 to CH3)• Supports for up-conversion and up/down Sepic conversion (CH4)• For synchronous rectification (CH1...

MB39A110 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MB39A110
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Supports for down-conversion and up/down Zeta conversion (CH1 to CH3)
• Supports for up-conversion and up/down Sepic conversion (CH4)
• For synchronous rectification (CH1, CH2)
• Power supply voltage range : 2.5 V to 11 V
• Reference voltage : 2.0 V ± 1 %
• Error amplifier threshold voltage : 1.23 V ± 1%
• High-frequency operation capability: 2 MHz (Max)
• Standby current : 0 mA (Typ)
• Built-in soft-start circuit independent of loads
• Built-in totem-pole type output for MOS FET
• Short-circuit detection capability by external signal (-INS terminal)


Pinout

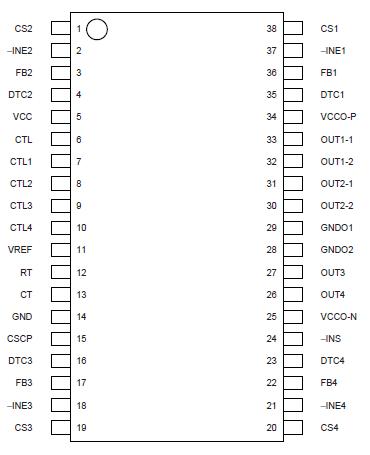

Connection Diagram


Specifications

Parameter Symbol Conditions Rating Unit
Min Max
Power supply voltage VCC VCC, VCCO terminal - 12 V
Output current IO OUT1 to OUT4 terminal - 20 mA
Peak output current IOP OUT1 to OUT4 terminal,
Duty 5%(t = 1/fOSC*Duty)		 - 400 mA
Power dissipation PD Ta +25 °C - 1680* mW
Storage temperature Tstg - -55 +125 °C


* : The packages are mounted on the epoxy board (10 cm * 10 cm).

WARNING: Semiconductor devices can be permanently damaged by application of stress (voltage, current, temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.




Description

The MB39A110 is a 4-channel DC/DC converter IC using pulse width modulation (PWM). This IC is ideal for up conversion, down conversion, and up/down conversion.

This is built-in 4ch in TSSOP-38P package and operates at 2 MHz Max. Each channel can be controlled, and soft-start.

The MB39A110 is an ideal power supply for high-performance portable devices such as digital still cameras.

The MB39A110 is covered by US Patent Number 6,147,477.
