MB3888

Features: • Output voltage setting using external resistor : 1 cell to 4 cells• High efficiency : 96% (VIN = 19 V, Vo = 16.8 V)• Wide range of operating supply voltages : 8 V to 25 V• Output voltage setting accuracy : 5 V ± 0.74% (Ta = -10 °C to 85 °C)• Charging curre...

product image

MB3888 Picture
See larger image
SeekIC No. : 004413318 Detail

MB3888: Features: • Output voltage setting using external resistor : 1 cell to 4 cells• High efficiency : 96% (VIN = 19 V, Vo = 16.8 V)• Wide range of operating supply voltages : 8 V to 25...

MB3888 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MB3888
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Output voltage setting using external resistor                                             : 1 cell to 4 cells
• High efficiency                                                                                               : 96% (VIN = 19 V, Vo = 16.8 V)
• Wide range of operating supply voltages                                                     : 8 V to 25 V
• Output voltage setting accuracy                                                                   : 5 V ± 0.74% (Ta = -10 °C to 85 °C)
• Charging current accuracy                                                                            : ±5%
• Built-in frequency setting capacitor enables frequency setting using external resistor only
• Oscillation frequency range                                                                          : 100 kHz to 500 kHz
• Built-in current detection amplifier with wide in-phase input voltage range : 0 V to VCC
• In standby mode, leave output voltage setting resistor open to prevent inefficient current loss
• Built-in standby current function                                                                  : 0 mA (standard)
• Built-in soft-start function independent of loads
• Built-in totem-pole output stage supporting P-channel MOS FETs devices


Pinout

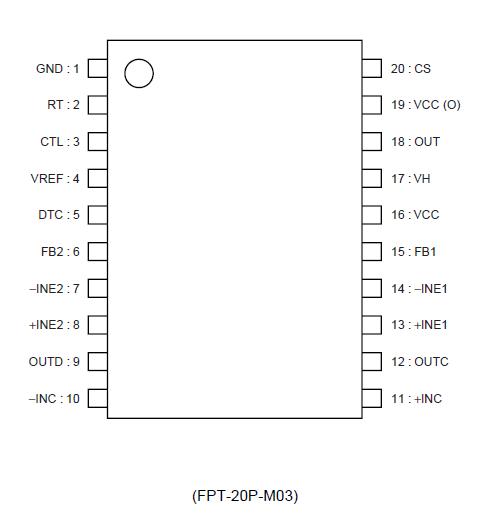

Connection Diagram


Specifications

Parameter Symbol Conditions Rating Unit
Min. Max.
Power supply voltage VCC VCC,VCC(O)terminal - 28 V
Output current IOUT - - 60 mA
Peak output current IOUT Duty 5% (t =1 / fOSC*Duty) - 700 mA
Power dissipation PD Ta +25 °C - 540* mW
Storage temperature TSTG - -55 +125 °C
* : The package is mounted on the dual-sided epoxy board (10 cm*10 cm) .
WARNING: Semiconductor devices can be permanently damaged by application of stress (voltage, current,
                 temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.


Description

The MB3888 is a DC/DC converter IC suitable for down-conversion, using pulse-width (PWM) charging and enabling output voltage to be set to any desired level from one cell to four cells.

The MB3888 provides a broad power supply voltage range and low standby current as well as high efficiency, making it ideal for use as a built-in charging device in products such as notebook PC.

The MB3888 is covered by US Patent Number 6,147,477.
