Features: • Detecting a voltage drop in the AC adapter and dynamically controlling the charge current (Dynamically-controlled charging)• Output voltage setting using external resistor : 1 cell to 4 cells• High efficiency : 96% (VIN = 19 V, Vo = 16.8 V)• Wide range of operat...

See larger image

SeekIC No. : 004413317 Detail

MB3887: Features: • Detecting a voltage drop in the AC adapter and dynamically controlling the charge current (Dynamically-controlled charging)• Output voltage setting using external resistor : ...

MB3887 Data Sheet

Get Latest Price

Part Number:: MB3887
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Product Details

Description

Features:

• Detecting a voltage drop in the AC adapter and dynamically controlling the charge current
   (Dynamically-controlled charging)
• Output voltage setting using external resistor                                             : 1 cell to 4 cells
• High efficiency                                                                                               : 96% (VIN = 19 V, Vo = 16.8 V)
• Wide range of operating supply voltages                                                     : 8 V to 25 V
• Output voltage setting accuracy                                                                   : 4.2 V ± 0.74% (Ta = −10 °C to +85 °C , per cell)
• Charging current accuracy                                                                           : ±5%
• Built-in frequency setting capacitor enables frequency setting using external resistor only
• Oscillation frequency range                                                                          : 100 kHz to 500 kHz
• Built-in current detection amplifier with wide in-phase input voltage range : 0 V to VCC
• In standby mode, leave output voltage setting resistor open to prevent inefficient current loss
• Built-in standby current function                                                                   : 0 A (standard)
• Built-in soft-start function independent of loads
• Built-in totem-pole output stage supporting P-channel MOS FET devices

Pinout

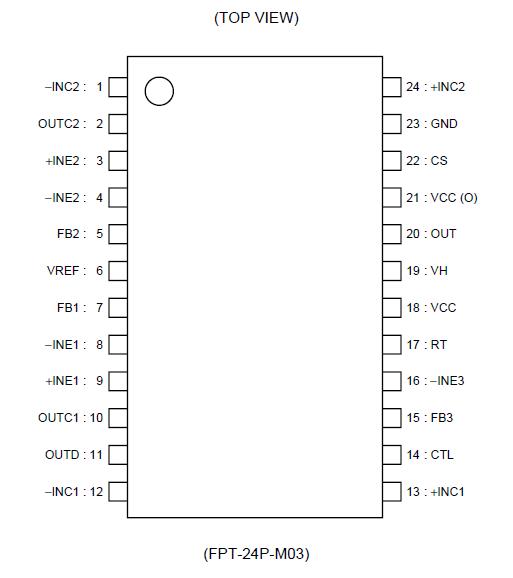

Connection Diagram

Specifications

Parameter	Symbol	Conditions	Rating		Unit
Parameter	Symbol	Conditions	Min.	Max.	Unit
Power supply voltage	V_CC	VCC,VCC(O)terminal*2	-	28	V
Output current	I_OUT	-	-	60	mA
Peak output current	I_OUT	Duty 5% (t =1 / f_OSC*Duty)	-	700	mA
Power dissipation	P_D	Ta +25 °C	-	740*¹	mW
Storage temperature	T_STG	-	-55	+125	°C

*1 : The package is mounted on the dual-sided epoxy board (10 cm * 10 cm) .
*2 : Refer to " THE SEQUENCE OF THE START-UP AND OFF OF THE POWER SUPPLY" for details.
WARNING: Semiconductor devices can be permanently damaged by application of stress (voltage, current,
temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.

Description

The MB3887 is a DC/DC converter IC suitable for down-conversion, using pulse-width (PWM) charging and enabling output voltage to be set to any desired level from one cell to four cells.

The MB3887 can dynamically control the secondary battery's charge current by detecting a voltage drop in an AC adapter in order to keep its power constant (dynamically-controlled charging) .

The charging method of MB3887enables quick charging, for example, with the AC adapter during operation of a notebook PC.

The MB3887 provides a broad power supply voltage range and low standby current as well as high efficiency, making it ideal for use as a built-in charging device in products such as notebook PC.

The MB3887 is covered by US Patent Number 6,147,477.
