Features: • Supports synchronous rectification (CH1, 2, 5)• Supports for down-conversion and up/down Zeta conversion (CH1, 2) Supports for up-conversion (CH5)• Supports up-conversion (CH3, 4, 6)• Low start-up voltage : 1.7 V (CH6)• Power supply voltage range : 2.4 V t...

See larger image

SeekIC No. : 004413314 Detail

MB3883: Features: • Supports synchronous rectification (CH1, 2, 5)• Supports for down-conversion and up/down Zeta conversion (CH1, 2) Supports for up-conversion (CH5)• Supports up-conversi...

MB3883 Data Sheet

Get Latest Price

Part Number:: MB3883
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Product Details

Description

Features:

• Supports synchronous rectification (CH1, 2, 5)
• Supports for down-conversion and up/down Zeta conversion (CH1, 2)
   Supports for up-conversion (CH5)
• Supports up-conversion (CH3, 4, 6)
• Low start-up voltage                : 1.7 V (CH6)
• Power supply voltage range     : 2.4 V to 9 V (CH6)
                                                    : 3.6 V to 9 V (CH1 to CH5)
• Built-in high-precision reference voltage circuit : ±1 %
• Wide operating oscillator frequency range with high-frequency capability : 100 kHz to 1 MHz
• Error amplifier output for soft start (CH1 to CH6)
• Totem-pole type output switch control circuit

Pinout

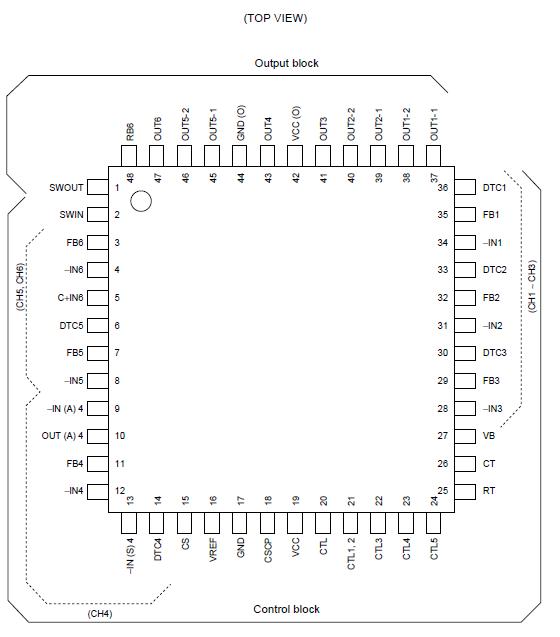

Connection Diagram

Specifications

Parameter	Symbol	Conditions	Rating		Unit
Parameter	Symbol	Conditions	Min.	Max.	Unit
Power supply voltage	V_CC	-	-	17	V
Power supply voltage	I_O	OUT pin	-	17	mA
Output current	I_O	OUT pin, Duty 5%	-	20	mA
Output peak current	P_D	Ta +25 °C (LQFP-48P)	-	860^*	mW
Power dissipation	P_D	Ta +25 °C (BCC-48P)	-	710^*	mW
Storage temperature	T_stg	-	55	+125	°C

* : The packages are mounted on the epoxy board (10 cm ´ 10 cm).
WARNING: Semiconductor devices can be permanently damaged by application of stress (voltage, current,
temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.

Description

The MB3883 is a 6-channel step-up/step-down DC/DC converter IC using pulse width modulation (PWM) and synchronous rectification, designed for low voltage, high efficiency, and compact size. This IC is ideal for up conversion, down conversion, and up/down conversion (using a step-up/step-down Zeta system with free input and output settings).

The MB3883 can operate at low voltage levels, and has a wide supply voltage range from 1.7 V to 9 V.

The MB3883 is available in two packages, an LQFP-48P or a leadless BCC-48P formed with a contact electrode pad only.

MB3883 is an ideal power supply for high-performance portable devices such as digital still cameras.
