MB3882

Features: • Synchronous rectification for high efficiency• Supply voltage range : 5.5 V to 18 V• High-precision reference voltage : 2.5 V ± 1%• Error Amp. threshold voltage : 1.25 V ± 1% (0 °C to 85 °C)• Oscillator frequency range : 10 kHz to 500 kHz• Built-in s...

product image

MB3882 Picture
See larger image
SeekIC No. : 004413313 Detail

MB3882: Features: • Synchronous rectification for high efficiency• Supply voltage range : 5.5 V to 18 V• High-precision reference voltage : 2.5 V ± 1%• Error Amp. threshold voltage :...

MB3882 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MB3882
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Synchronous rectification for high efficiency
• Supply voltage range : 5.5 V to 18 V
• High-precision reference voltage : 2.5 V ± 1%
• Error Amp. threshold voltage : 1.25 V ± 1% (0 °C to 85 °C)
• Oscillator frequency range : 10 kHz to 500 kHz
• Built-in soft start circuit with error Amp. input control
• Totem pole type output for N-ch MOSFET


Pinout

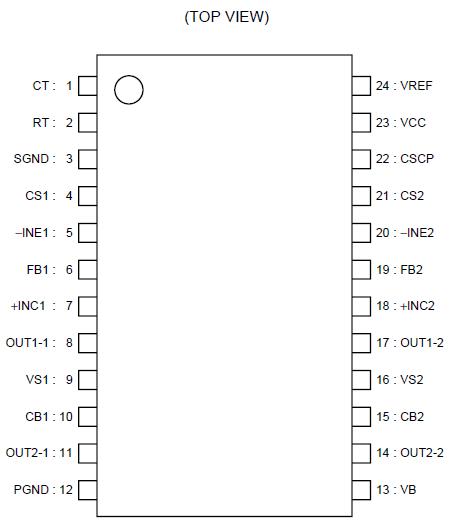

Connection Diagram


Specifications

Parameter

Symbol

Condition

Rating

Unit

Min.

Max.

Supply voltage

VCC

-

-

20

V

Boot voltage

VCB

CB terminal

-

25

V

Output current

IO

-

-

120

mA

Peak output current

IOP

Duty 5%
(t = 1 / fOSC*Duty)

-

800

mA

Power dissipation

PD

Ta +25°C

-

740*

mW

Storage temperaturee

Tstg

-

55

+125

°C

* : The packages are mounted on the dual-sided epoxy board (10cm *10cm).
WARNING: Semiconductor devices can be permanently damaged by application of stress (voltage, current,
                  temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.


Description

The MB3882 is a 2-channel DC/DC converter IC using pulse width modulation (PWM) and synchronous rectification, designed for down conversion applications.

The MB3882 is a power supply with high output drive capacity. Synchronous rectification also provides for high efficiency.

In addition, a 5 V regulator is built in to reduce the number of system components. The MB3882 is an ideal built-in power supply for driving products with high speed CPU's such as home TV game devices and notebook PC's.
