MB3881

Features: • Supporting the step-up/step-down Zeta methods (CH1 to CH7)• Supporting synchronous rectification (CH1, CH2)• Low start-up voltage : 1.8 V (CH8)• Power-supply voltage range : 4 V to 13 V (CH1 to CH7)• Built-in high-precision reference voltage generator : 2....

product image

MB3881 Picture
See larger image
SeekIC No. : 004413312 Detail

MB3881: Features: • Supporting the step-up/step-down Zeta methods (CH1 to CH7)• Supporting synchronous rectification (CH1, CH2)• Low start-up voltage : 1.8 V (CH8)• Power-supply volt...

MB3881 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MB3881
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Supporting the step-up/step-down Zeta methods (CH1 to CH7)
• Supporting synchronous rectification (CH1, CH2)
• Low start-up voltage : 1.8 V (CH8)
• Power-supply voltage range : 4 V to 13 V (CH1 to CH7)
• Built-in high-precision reference voltage generator : 2.5 V ± 1%
• Oscillation frequency range : 100 kHz to 800 kHz
• Built-in triangular wave oscillator capable of external synchronization
• Error amplifier output for soft start (CH1 to CH4, CH7)


Pinout

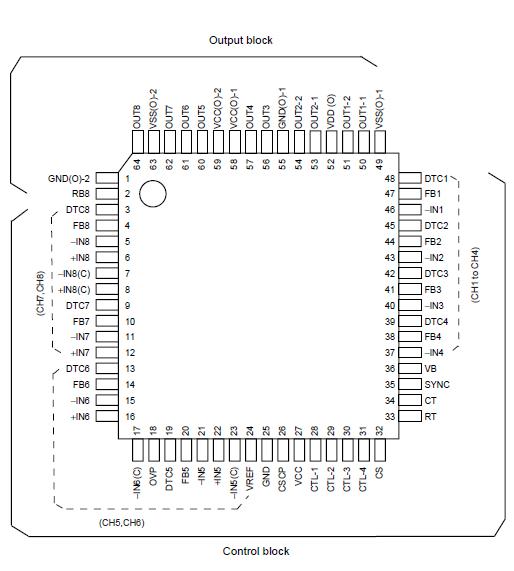

Connection Diagram


Specifications

Parameter

Symbol

Conditions

Rating

Unit

Min.

Max.

Power supply voltage

VCC

-

-

17

V

VDD

-

-

17

V

Output current

IO

OUT pin

-

50

mA

Output peak current

IO

OUT pin, Duty 5%

-

200

mA

Power dissipation

PD

Ta +25 °C

-

860*

mW

Storage temperature

Tstg

-

55

+125

°C

* : The packages are mounted on the epoxy board (10 cm ´ 10 cm).
WARNING: Semiconductor devices can be permanently damaged by application of stress (voltage, current,
                  temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.


Description

The MB3881 a step-up/step-down type of 8-channel, DC/DC converter IC. It uses pulse width modulation (PWM) and synchronous rectification, designed for low voltage, high efficiency, and compactness. This IC is ideal for down conversion and up/down conversion (employing a step-up/step-down Zeta system enabling free I/O setting).

The MB3881 can use channel 8 as its own power supply to provide a wide range of supply voltages, allowing itself to operate at low voltage.

In addition, the MB3881 contains a triangular wave oscillator which can operate in synchronization with an external device, allowing the switching timing to be controlled externally. This contributes to reduction in switching noise, facilitating system configuration.

The MB3881 is designed to be compact using the LQFP-64P package whose body size is 7 ´ 7 mm.

The MB3881 is the best for the power supply for advanced portable equipment such as a camera integrated VTR.
