MB3878

Features: • Detecting a voltage drop in the AC adaptor and dynamically controlling the charge current(Dynamically-controlled charging)• Output voltage setting using external resistor : 1 cell to 4 cells• High efficiency : 94 %• Wide range of operating supply voltages: 7 V t...

product image

MB3878 Picture
See larger image
SeekIC No. : 004413310 Detail

MB3878: Features: • Detecting a voltage drop in the AC adaptor and dynamically controlling the charge current(Dynamically-controlled charging)• Output voltage setting using external resistor : 1...

MB3878 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MB3878
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Detecting a voltage drop in the AC adaptor and dynamically controlling the charge current
(Dynamically-controlled charging)
• Output voltage setting using external resistor : 1 cell to 4 cells
• High efficiency : 94 %
• Wide range of operating supply voltages         : 7 V to 25 V
• Output voltage setting accuracy                       : 4.2V ± 0.8% (per cell)
• Built-in frequency setting capacitor enables frequency setting using external resistor only
• Oscillator frequency range                               : 100kHz to 500kHz
• Built-in current detector amplifier with wide in-phase input voltage range : 0 V to Vcc
• In standby mode, leave output voltage setting resistor open to prevent inefficient current loss
• Built-in standby current function                      : 0 A (standard)
• Built-in soft start function
• Built-in totem-pole output stage supporting P-channel MOS FETs devices


Pinout

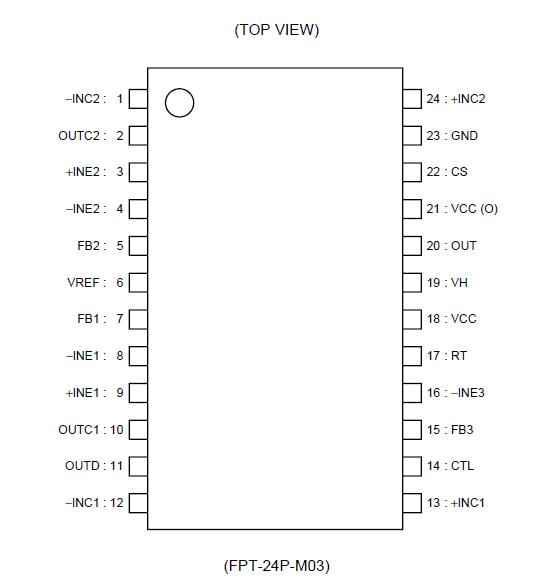

Connection Diagram


Specifications

Parameter Symbol Conditions Rating Unit
Min. Max.
Power supply voltage VCC VCC,VCC(O) - 28 V
Output current IOUT - - 60 mA
Peak output current IOUT Duty 5% (t =1 / fOSC*Duty) - 500 mA
Power dissipation PD Ta +25 °C - 740* mW
Storage temperature Tstg - -55 +125 °C
* : The package is mounted on the dual-sided epoxy board (10 cm*10 cm).
WARNING: Semiconductor devices can be permanently damaged by application of stress (voltage, current,
temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.


Description

The MB3878 is a DC/DC converter IC suitable for down-conversion, using pulse-width (PWM) charging and enabling output voltage to be set to any desired level from one cell to four cells.

The MB3878 can dynamically control the secondary battery's charge current by detecting a voltage drop in an AC adaptor in order to keep its power constant (dynamically-controlled charging).

The charging method of MB3878enables quick charging, for example, with the AC adaptor during operation of a notebook PC.

The MB3878 provides a broad power supply voltage range and low standby current as well as high efficiency, making it ideal for use as a built-in charging device in products such as notebook PC.
