Features:

• Detecting a voltage drop in the AC adapter and dynamically controlling the charge current (Dynamically-controlled
   charging)
• High efficiency : 93 %(In reverse-current preventive diode)
• Wide range of operating supply voltages : 7 V to 25 V
• Output voltage precision
   (Built-in output voltage setting resistor ) : ± 0.8 % (Ta = + 25 °C)
• High precision reference voltage source : 4.2 V ± 0.8 %
• Support for frequency setting using an external resistor
  (Frequency setting capacitor integrated) :100 kHz to 500 kHz
• Built-in current detector amplifier with wide in-phase input voltage range : 0 V to VCC
• Built-in standby current function : 0 A (Typ.)
• Built-in soft start function
• Capable of parallel charging (Charging the two battery packs at a time)
• Internal totem-pole output stage supporting P-channel MOS FETs devices


Pinout

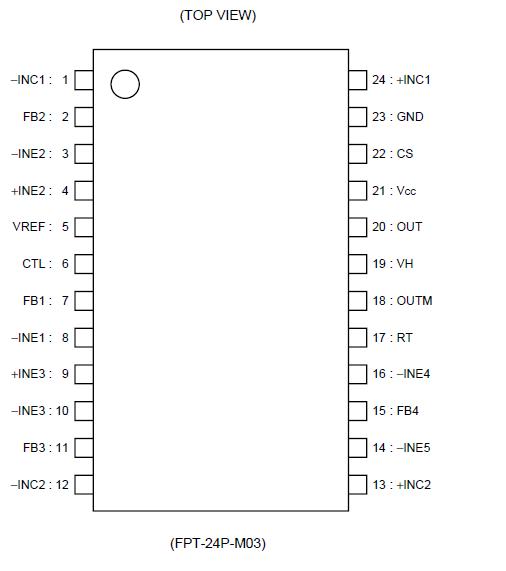

Connection Diagram


Specifications

Parameter Symbol Conditions Rating Unit
Min. Max.
Power supply voltage VCC - - 28 V
Output terminal current IOUT - - 60 mA
Peak output current IOUT Duty 5% (t =1 / fOSC*Duty) - 500 mA
OUTM terminal output voltage VOUTM - - 17 V
Power dissipation PD Ta +25 °C - 740* mW
Storage temperature Tstg - -55 +125 °C
*: The package is mounted on the dual-sided epoxy board (10 cm *10 cm).
WARNING: Semiconductor devices can be permanently damaged by application of stress (voltage, current,
temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.


Description

The MB3874 and MB3876 are parallel charging DC/DC converter ICs suitable for down-conversion, which uses pulse width modulation (PWM) for controlling the output voltage and current independently.

The MB3874 can dynamically control the secondary battery's charge current by detecting a voltage drop in an AC adapter in order to keep its power constant (dynamically-controlled charging).

The charging method enables quick charging, for example, with the AC adapter during operation of a notebook PC.

The MB3874 also enable parallel charging, or charging two batteries at the same time, dramatically reducing the charging time.

With an on-chip output voltage setting resistor which allows the output voltage to be set at high precision, the MB3874 is best suited as internal battery chargers for notebook PCs.

The MB3874 support 3-cell battery and the MB3876 support 4-cell battery.
