MB3863

Features: • Wide voltage range: VCC = +4 to +36V• Motor drive current: 500 mA (1.2 A for surge current)• Two internal independent drivers• Internal heat protection circuit• Control at TTL and CMOS level• Stand-by mode• Brake function to stop motors• ...

product image

MB3863 Picture
See larger image
SeekIC No. : 004413302 Detail

MB3863: Features: • Wide voltage range: VCC = +4 to +36V• Motor drive current: 500 mA (1.2 A for surge current)• Two internal independent drivers• Internal heat protection circuit...

MB3863 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MB3863
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Wide voltage range: VCC = +4 to +36V
• Motor drive current: 500 mA (1.2 A for surge current)
• Two internal independent drivers
• Internal heat protection circuit
• Control at TTL and CMOS level
• Stand-by mode
• Brake function to stop motors
• Surge absorption diode
• Stepping motor application
• Symmetrical pin layout


Pinout

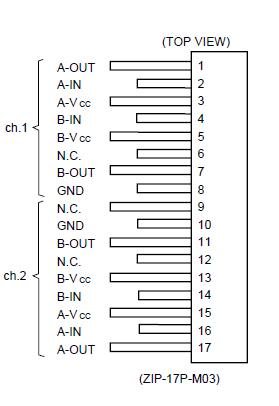

Connection Diagram


Specifications

Parameter Symbol Ratings Unit
Supply Voltage VCC +38 V
Output Current IO 550 mA
Maximum Output Current (within 5 ms) IOmax 1.2 A
Allowable Loss PD 6.5 (ZIP-17) W
1.6 (SOP-20)
Operating Temperature TOP 20 to +75 °C
Storage Temperature Tstg 55 to +150 °C



Description

The MB3863 is an IC motor driver with two independent reverse control functions. It drives motor drives of frontloading VCRs and auto-reverse cassette decks and stepping motors by reversible control at TTL and CMOS levels. A heat protection circuit is incorporated to prevent damage by overheating.
