Features:

• Low on resistance switch (typ. 45 mW)
• Low input voltage operation (2.2 V to 5.5 V)
• Switch current (max. 2 A)
• UVLO (VTH = 1.9 V)
• External settings for soft start time and switch current limit
• On-chip overheating and overcurrent detection (output off latching)
• On-chip abnormal state detection circuit (O.C. pin)
• On-chip output pin discharge control circuit
• Supply current = 0 mA in standby mode (CONTROL < 0.8 V)
• Reverse current protection function in off mode


Pinout

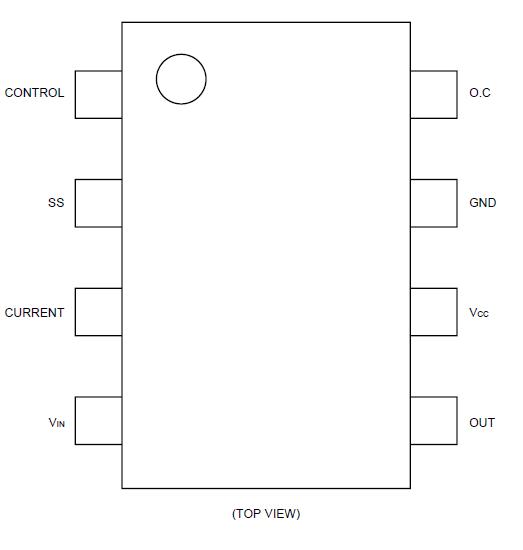

Connection Diagram


Specifications

Parameter Symbol Condition Rating Unit
Min. Max.
Input voltage VIN

-

 0.3 7.0 V
Power supply voltage VCC

-

 0.3 7.0 V
Control voltage VCTL

-

 0.3 7.0 V
Switch current ISW VIN = 2.2 V to 5.5 V, Ta = +25°C

-

 3 A (DC) A
Allowable dissipation PD Ta = +85°C

-

 280 mW
Storage temperature Tstg

-

 55 +125 °C
WARNING: Semiconductor devices can be permanently damaged by application of stress (voltage, current,
                  temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.


Description

The FUJITSU MB3841 is a one-channel power management switch IC with extremely low on resistance.

The MB3841 is designed for a variety of switching applications, featuring operation from low input voltages (VIN > 2.2 V) and stable on resistance that does not depend on input voltage. The switch current limit can be externally set over a wide range from 100 mA to 2 A. A safety function detects overcurrent conditions, immediately sets the switch to off mode and sends an external notification signal. The MB3841 is therefore ideal for power management switching applications with USB specifications.

In addition, the MB3841 has features that ensure accurate on-off switching by preventing reverse current in off mode, as well as rapid discharge of capacitors connected to output.
