MB3832A

Features: • High precision reference voltage source: 2.5 V ± 0.5% (+25°C): 2.5 V ± 1.0% (10°C to +85°C)• High frequency operating capability: 500 kHz max.• Wide operating supply voltage range: 3.6 V to 18 V• On-chip current detector amplifier with wide in-phase input voltag...

product image

MB3832A Picture
See larger image
SeekIC No. : 004413294 Detail

MB3832A: Features: • High precision reference voltage source: 2.5 V ± 0.5% (+25°C): 2.5 V ± 1.0% (10°C to +85°C)• High frequency operating capability: 500 kHz max.• Wide operating supply vo...

MB3832A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MB3832A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High precision reference voltage source: 2.5 V ± 0.5% (+25°C)
                                                                 : 2.5 V ± 1.0% (10°C to +85°C)
• High frequency operating capability: 500 kHz max.
• Wide operating supply voltage range: 3.6 V to 18 V
• On-chip current detector amplifier with wide in-phase input voltage range: 0 V to VCC
• On-chip standby function
• On-chip triangular waveform oscillator capable of operating in external synchronization
• On-chip, timer-latch short-circuit protection circuit
• Internal totem-pole output stage supporting P-channel MOS FETs and PNP transistors


Pinout

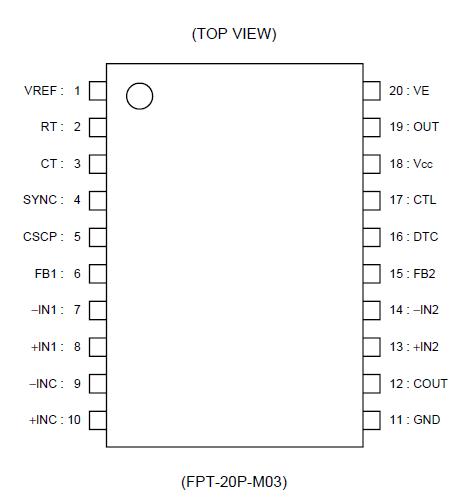

Connection Diagram


Specifications

Parameter

Symbol

Condition

Rating

Unit

Min.

Max.

Power supply voltage

VCC

-

-

20

V

Control input voltage

VCTL

-

-

20

V

Output current

IO

OUT pin, DC

-

50

mA

Peak output current

IO

OUT pin,
Duty 5%

-

600

mA

Allowable dissipation

PD

Ta +25°C

-

540*

mW

Storage temperature

Tstg

-

55

+125

°C

* :When mounted on a 10 cm-square dual-sided epoxy base board
WARNING: Semiconductor devices can be permanently damaged by application of stress (voltage, current,
                  temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.


Description

The MB3832A is a pulse width modulation (PWM) DC/DC converter IC, incorporating a current detector amplifier and error amplifiers (2 circuits) to control the output voltage and current independently. It is suitable for downconversion.

With an on-chip reference voltage generator, the MB3832A is best suited for use in applications such as lithiumion battery (1-cell to 3-cell) chargers.
