MB3827

Features: • Compatible with step-up/step-down switching methods (channel 1)• Compatible with step-up/step-down Zeta methods (channels 2 to 6)• Synchronous rectification (channels 1 and 2)• Low start-up voltage : 1.8 V (channel 7 for self-power supply)• Power supply vo...

product image

MB3827 Picture
See larger image
SeekIC No. : 004413291 Detail

MB3827: Features: • Compatible with step-up/step-down switching methods (channel 1)• Compatible with step-up/step-down Zeta methods (channels 2 to 6)• Synchronous rectification (channels 1...

MB3827 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MB3827
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Compatible with step-up/step-down switching methods (channel 1)
• Compatible with step-up/step-down Zeta methods (channels 2 to 6)
• Synchronous rectification (channels 1 and 2)
• Low start-up voltage : 1.8 V (channel 7 for self-power supply)
• Power supply voltage range : 4 V to 13 V (channels 1 to 6)
• Built-in high-precision reference voltage generator : 2.5 V±1%
• Oscillator frequency range : 100 kHz to 800 kHz
• Error amplifier output for soft start (channels 1 to 6)


Pinout

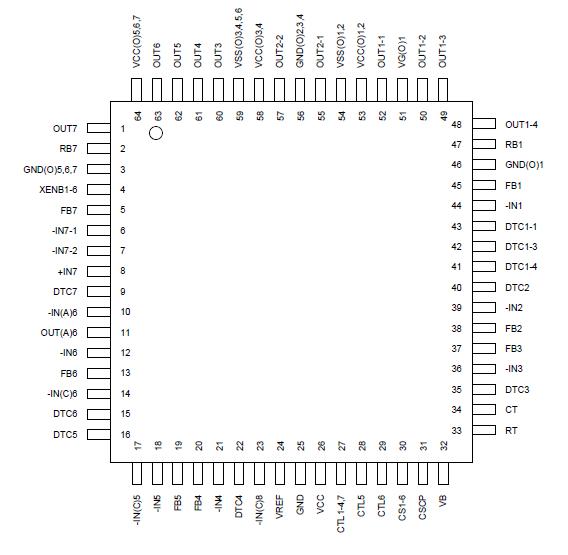

Connection Diagram


Specifications

Parameter

Symbol

Conditions

Rating

Unit

Min.

Max.

Power supply voltage

VCC

-

-

17

V

VG

-

-

17

V

Output current

Io

OUT pin

-

20

mA

Peak output current

Io

OUT pin, Duty 5%

-

200

mA

Power dissipation

PD

Ta +25°C

-

1000*

mW

Storage temperature

Tstg

-

55

+125

°C

* : The packages are mounted on the dual-sided epoxy board (10 cm ´ 10 cm).
WARNING: Semiconductor devices can be permanently damaged by application of stress (voltage, current,
                  temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.


Description

The MB3827 is a pulse width modulation (PWM) type 6-channel DC/DC converter IC with, synchronous rectification for voltage step-up and step-down. The MB3827 is ideal for low voltage, high efficiency, compact applications and for down conversion and up/down conversion (with two types of voltage step-up/step-down methods allowing input/output relations to be set independently).

In addition the MB3827 features a built-in self-supply power channel (channel 7) providing a wide range of supply voltages, and operates from two dry-cell batteries.

This MB3827 is ideal for high performance portable devices such as digital still cameras.
