MB3817

Features: • Wide range of operating power supply voltages: 2.5 V to 18 V• Built-in high-precision reference voltage generator: 1.5 V ± 2%• High speed operation is possible: Max. 500 kHz• Wide input voltage range of error amplifier: 0 to VCC 0.9 V• Built-in soft start...

product image

MB3817 Picture
See larger image
SeekIC No. : 004413288 Detail

MB3817: Features: • Wide range of operating power supply voltages: 2.5 V to 18 V• Built-in high-precision reference voltage generator: 1.5 V ± 2%• High speed operation is possible: Max. 50...

MB3817 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MB3817
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Wide range of operating power supply voltages: 2.5 V to 18 V
• Built-in high-precision reference voltage generator: 1.5 V ± 2%
• High speed operation is possible: Max. 500 kHz
• Wide input voltage range of error amplifier: 0 to VCC 0.9 V
• Built-in soft start function
• Built-in timer/latch-actuated short-circuiting protection circuit
• Totem-pole type output with adjustable on/off current (for PNP transistors)
• Built-in standby function
• Small package: SSOP-16P (FPT-16P-M05)


Pinout

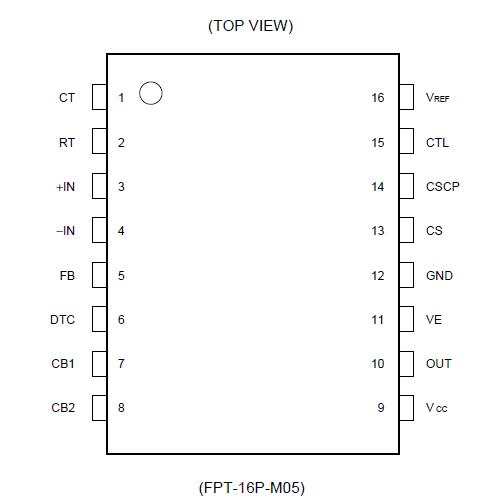

Connection Diagram


Specifications

Parameter Symbol Condition Rating Unit
Min. Max.
Power supply voltage VCC - - 20 V
Power dissipation PD Ta +25°C - 440* mW
Storage temperature Tstg - 55 +125 °C
* : The package is mounted on the epoxy board (10 cm*10 cm).
WARNING: Semiconductor devices can be permanently damaged by application of stress (voltage, current,
                  temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.


Description

The MB3817 is a pulse width modulator (PWM) type switching regulator controller IC designed for low-voltage and high-speed operation. This can be used in applications as down-conversion or down/up-conversion (Zeta method).

With fewer external components and faster operating speed, the MB3817 enables reduction in power supply unit size, making it ideal for use with internal power supplies in compact, high-performance portable devices.
