MB3788

Features: - Wide operating power supply voltage range: 3.6 to 18 V- Low power dissipation- Operating: 1.9 mA (standard) Standby: 10 A max.- High-frequency operation: 100 kHz to 1 MHz- On-chip timer and latch-type short-circuit detection circuit- Wide error amplifier input voltage range: -0.2 V to ...

product image

MB3788 Picture
See larger image
SeekIC No. : 004413273 Detail

MB3788: Features: - Wide operating power supply voltage range: 3.6 to 18 V- Low power dissipation- Operating: 1.9 mA (standard) Standby: 10 A max.- High-frequency operation: 100 kHz to 1 MHz- On-chip timer ...

MB3788 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MB3788
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

- Wide operating power supply voltage range: 3.6 to 18 V
- Low power dissipation
- Operating: 1.9 mA (standard)
  Standby: 10 A max.
- High-frequency operation: 100 kHz to 1 MHz
- On-chip timer and latch-type short-circuit detection circuit
- Wide error amplifier input voltage range: -0.2 V to VCC - 1.8 V
- On-chip high-accuracy reference voltage circuit: 2.50 V ±1%
- Output circuit
  PNP transistor drive output pin: Push-pull type
  ON/OFF current values set independently
- On-chip standby function and output control function
- High-density packaging: SSOP-24P


Pinout

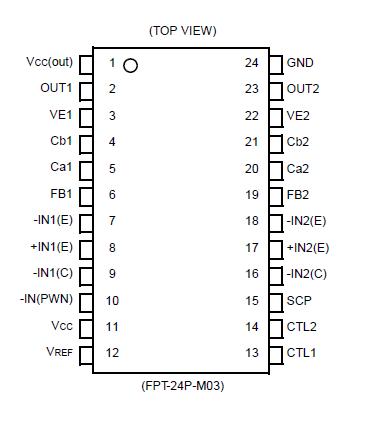

Connection Diagram


Specifications


                                                                                                              (TA = +25°C)
Parameter Symbol Conditions Ratings Unit
Supply voltage VCC - 20 V
Control input voltage VICTL - 20 V
Allowable loss PD Ta +25°C 00* mW
Operating ambient temperature TOP - -30 to +85 °C
Storage temprature Tstg - -55 to +125 °C
* Value obtained when mounted on 4 cm ´ 4 cm double-sided epoxy substrate



Description

The MB3788 is a dual-channel PWM-type switching regulator controller; it incorporates a reference voltage.

The MB3788 has a PWM circuit and an output circuit as well as a reference voltage power supply with a voltage accuracy of ±1%. The maximum operating frequency is 1 MHz. It is designed for a voltage-drop output switching regulator suitable for a logic power supply or speed control of a DC motor.

The MB3788 is compatible with all master ICs producing triangular waves, sawtooth waves and sine waves with an amplitude of 1.3 to 1.9 V. It can be used in high-performance portable equipment such as a video camcorder or notebook personal computer (word processor).
