Product Details

Description

Features:

FEATURES
• Two 8-bit bidirectional bus interfaces
• 3-State buffers
• Power-up 3-State
• Multiple V_CC and GND pins minimize switching noise
• Output capability: +64mA/32mA
• Latch-up protection exceeds 500mA per Jedec Std 17
• ESD protection exceeds 2000 V per MIL STD 883 Method 3015
and 200 V per Machine Model
• Inputs are disabled during 3-State mode

Pinout

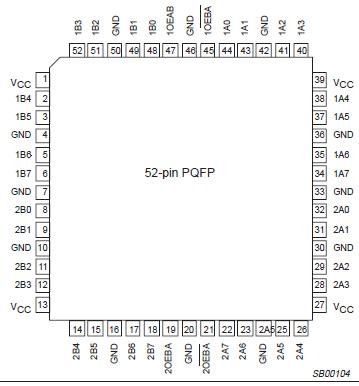

Connection Diagram

Specifications

SYMBOL	PARAMETER	CONDITIONS	RATING	UNIT
V_CC	DC supply voltage		0.5 to +7.0	V
I_IK	DC input diode current	V_I< 0	18	mA
V_I	DC input voltage3		1.2 to +7.0	V
I_OK	DC output diode current	V_O< 0	50	mA
V_OUT	DC output voltage3	output in Off or High state	0.5 to +5.5	V
I_OUT	DC output current	output in Low state	128	mA
T_stg	Storage temperature range		65 to 150	°C

1. Stresses beyond those listed may cause permanent damage to the device. These are stress ratings only and functional operation of the
device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to
absolute-maximum-rated conditions for extended periods may affect device reliability.
2. The performance capability of a high-performance integrated circuit in conjunction with its thermal environment can create junction
temperatures which are detrimental to reliability. The maximum junction temperature of this integrated circuit should not exceed 150°C.
3. The input and output voltage ratings may be exceeded if the input and output current ratings are observed.

Description

The MB2623 high-performance BiCMOS device combines low static and dynamic power dissipation with high speed and high output drive.

The MB2623 is a 16-bit transceiver featuring non-inverting 3-State bus compatible outputs in both send and receive directions. The MB2623 is designed for asynchronous two-way communication between data buses.

The MB2623 allows for maximum flexibility in timing. This device allows data transmission from the A bus to the B bus or from the B bus to the A bus, depending upon the logic levels at the Enable inputs (nOEBA and nOEAB). The Enable inputs can be used to disable the MB2623 so that the buses are effectively isolated.
