MB2065SS1W01-BA, US $ 3.68-3.68, MB2065SS1W01-BA DataSheet download, circuit diagram from SeekIC.com

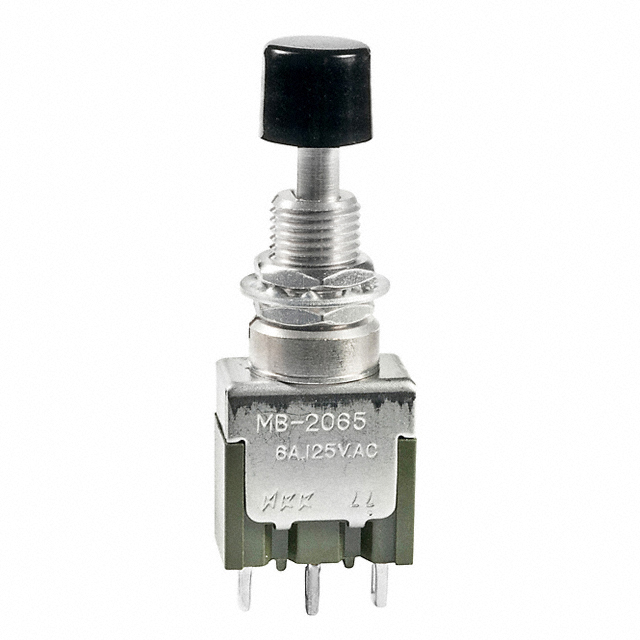

See larger image

SeekIC No. : 004167535 Detail

MB2065SS1W01-BA: SWITCH PUSHBUTTON SPDT 6A 125V

MB2065SS1W01-BA Data Sheet

US $ 3.68~3.68 / Piece | Get Latest Price

Part Number:: MB2065SS1W01-BA
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1

Unit Price
$3.68

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

MB200000 evaluate
US $12.94 - 12.94 / Piece

BOTTOM MOUNT BRACKET KIT
MB2011LD1G01 evaluate
US $1.95 - 3.6 / Piece

SWITCH PUSH SPDT 0.4VA 28V
MB2011LD1G01-BA evaluate
US $2.62 - 3.13 / Piece

Pushbutton Switches ON(ON).335 FLTD BSHG SOLDER .315" BLK CAP

Product Details

Quick Details

Series:	MB2000	Manufacturer:	NKK Switches
Number of Receivers :	11	Type:	Standard
Circuit:	SPDT	Switch Function:	On-On
Current Rating:	6A (AC), 3A (DC)	Voltage Rating - AC:	125V
Voltage Rating - DC:	30V	Actuator Type:	Round, Button
Color - Actuator/Cap:	Black	Illumination Type, Color:	-
Illumination Voltage (Nominal):	-	Mounting Type:	Panel Mount, Rear
Termination Style:	Solder Lug	Ingress Protection:	-
Features:	Epoxy Sealed Terminals	Panel Cutout Dimensions:	Circular - 6.50mm Dia

Description

Type: Standard
Switch Function: On-On
Illumination Type, Color: -
Illumination Voltage (Nominal): -
Ingress Protection: -
Packaging: Bulk
Color - Actuator/Cap: Black
Voltage Rating - AC: 125V
Actuator Type: Round, Button
Mounting Type: Panel Mount, Rear
Termination Style: Solder Lug
Circuit: SPDT
Voltage Rating - DC: 30V
Features: Epoxy Sealed Terminals
Manufacturer: NKK Switches
Panel Cutout Dimensions: Circular - 6.50mm Dia
Series: MB2000
Current Rating: 6A (AC), 3A (DC)

Parameters:

Technical/Catalog Information	MB2065SS1W01-BA
Vendor	NKK Switches of America Inc
Category	Switches
Actuator Type	Round Button
Circuit	SPDT
Contact Rating @ Voltage	6A @ 125VAC
Illumination Type, Color	-
Illumination Voltage (Nominal)	-
Mounting Type	Panel Mount
Switch Function	On-On
Termination Style	Solder Lug
Type	Standard
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	MB2065SS1W01 BA MB2065SS1W01BA
