MB2065SB3W01-DA-RO

Pushbutton Switches ON-ON 12MM SPLSHPROF BSHG SLDR.52 BLK CAP

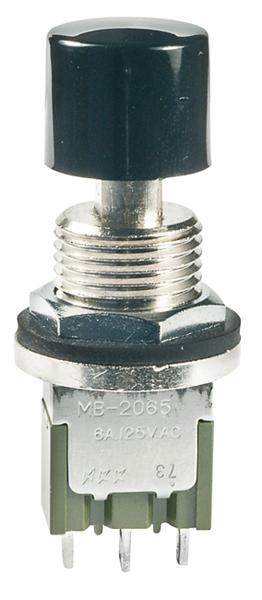

product image

MB2065SB3W01-DA-RO Picture
See larger image
SeekIC No. : 002619941 Detail

MB2065SB3W01-DA-RO: Pushbutton Switches ON-ON 12MM SPLSHPROF BSHG SLDR.52 BLK CAP

MB2065SB3W01-DA-RO Data Sheet

floor Price/Ceiling Price

US $ 3.94~4.31 / Piece | Get Latest Price
Part Number:
MB2065SB3W01-DA-RO
Mfg:
NKK Switches
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~25
  • 25~50
  • 50~100
  • Unit Price
  • $4.31
  • $4.17
  • $4.12
  • $3.94
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Contact Form : SPDT Switch Function : ON - ON
Current Rating : 6 A Voltage Rating AC : 250 V
Mounting Style : Panel Illumination : Not Illuminated
IP Rating : IP67 Termination Style : Solder Lug
Contact Plating : Silver Actuator : Plunger, with Cap
Flammability Rating : UL 94 V-0

Description

Voltage Rating DC :
Power Rating :
Illumination Color :
Cap Color :
Packaging :
Illumination : Not Illuminated
Contact Plating : Silver
Flammability Rating : UL 94 V-0
Contact Form : SPDT
Termination Style : Solder Lug
Mounting Style : Panel
Voltage Rating AC : 250 V
IP Rating : IP67
Current Rating : 6 A
Actuator : Plunger, with Cap
Switch Function : ON - ON


Parameters:

Technical/Catalog InformationMB2065SB3W01-DA-RO
VendorNKK Switches
CategorySwitches, Encoders
Mounting TypePanel Mount
TypeStandard
CircuitSPDT
Switch FunctionOn-On
Contact Rating @ Voltage6A @ 125VAC
Contact Rating @ Voltage3A @ 250VAC
Contact Rating @ Voltage3A @ 30VDC
OrientationVertical
Termination StyleSolder Lug
Actuator TypeRound Button
Actuator ColorBlack
Cutout Hole12.5mm Dia.
Length13.000 mm [Typ]
Width7.900 mm [Typ]
Actuator Diameter13.200 mm [Typ]
Actuator Length9.000 mm [Typ]
Bushing Length12.000 mm [Typ]
Bushing ThreadM12 x 1
Contact FinishSilver
Contact Resistance10.000 mOhms [Max]
Operating Temperature-30 °C [Min]
Operating Temperature85 °C [Max]
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names MB2065SB3W01 DA RO
MB2065SB3W01DARO
360 2189 ND
3602189ND
360-2189
