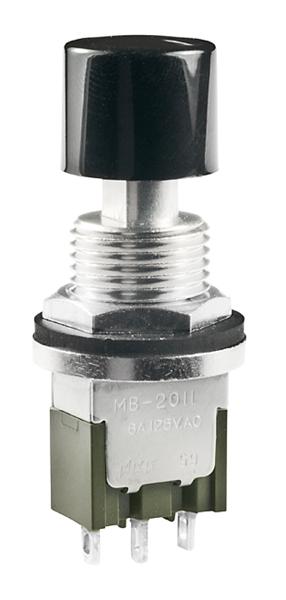

MB2011SB3W01-DA-RO

Voltage Rating DC :
Power Rating :
Illumination Color :
Cap Color :
Packaging :
Illumination : Not Illuminated
Contact Plating : Silver
Flammability Rating : UL 94 V-0
Contact Form : SPDT
Termination Style : Solder Lug
Switch Function : ON - (ON)
Mounting Style : Panel
Voltage Rating AC : 250 V
IP Rating : IP67
Current Rating : 6 A
Actuator : Plunger, with Cap


Parameters:

Technical/Catalog Information	MB2011SB3W01-DA-RO
Vendor	NKK Switches
Category	Switches, Encoders
Mounting Type	Panel Mount
Type	Standard
Circuit	SPDT
Switch Function	On-Mom
Contact Rating @ Voltage	6A @ 125VAC
Contact Rating @ Voltage	3A @ 250VAC
Contact Rating @ Voltage	3A @ 30VDC
Orientation	Vertical
Termination Style	Solder Lug
Actuator Type	Round Button
Actuator Color	Black
Cutout Hole	12.5mm Dia.
Length	13.000 mm [Typ]
Width	7.900 mm [Typ]
Actuator Diameter	13.200 mm [Typ]
Actuator Length	9.000 mm [Typ]
Bushing Length	12.000 mm [Typ]
Bushing Thread	M12 x 1
Contact Finish	Silver
Contact Resistance	10.000 mOhms [Max]
Operating Temperature	-30 °C [Min]
Operating Temperature	85 °C [Max]
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	MB2011SB3W01 DA RO MB2011SB3W01DARO 360 2181 ND 3602181ND 360-2181
