Product Details

Description



Features:

• Two PLLs' for transmission/reception
• Low current consumption : ICC = 7 mA typ. at 3 V
• Power saving function : IPS = 10 mA max.
• Divide ratio setting with serial data input :
   Binary 12-bit reference counter:6 to 4,095
   Binary 17-bit main counter: 1,024 to 131,071
   *Main counters can be programmed individually each other.
• On-chip constant current source charge pumps
• Adjustable charge pump output current with an external resistor
• Lock detection function
• Phase matching circuit helps fast intermittent operation
• Plastic 20-pin SSOP (shrink small outline) package

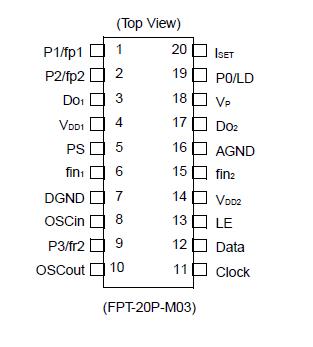

Pinout

Connection Diagram


Specifications

Parameter Symbol Rating Unit Remark
Power supply voltage VDD1, 2 0.3 to +6.0 V



VP VDD to 6.0 V



Output voltage VO 0.3 to VDD +0.3 V



Output current IO ±10 mA



Open drain withstand voltage VOOP 0.5 to 7.0 V



Storage temperature Tstg 55 to +125



Note: Permanent device damage may occur if the above Absolute Maximum Ratings are exceeded. Functional operation
should be restricted to the conditions as detailed in the operational sections of this data sheet. Exposure to absolute
maximum rating conditions for extended periods may affect device reliability.


Description

The Fujitsu MB15U10 is a dual serial input phase-locked loop (PLL) frequency synthesizer and is ideally suitable for mobile communications such as cellular phones.

The MB15U10 has two PLL frequency synthesizer circuits on a single chip: one for transmission and the other for reception (PLL1 and PLL2).

The MB15U10 can operate from a +2.6V to 5.5V supply. Fujitsu's advanced technology achieves an Icc of 7 mA (typical) as well as 10 mA (max.) at power saving mode.
