MB15F78SP

Features: • High frequency operatio : RX synthesizer : 2550 MHz max: TX synthesizer : 1200 MHz max• Low power supply voltage : VCC = 2.4 to 3.6 V• Ultra Low power supply current : ICC = 5.5 mA typ. (VCC = Vp = 2.7 V, Ta = +25, SWTX = SWRX = 0, in TX/RX locking state)• Direc...

product image

MB15F78SP Picture
See larger image
SeekIC No. : 004413181 Detail

MB15F78SP: Features: • High frequency operatio : RX synthesizer : 2550 MHz max: TX synthesizer : 1200 MHz max• Low power supply voltage : VCC = 2.4 to 3.6 V• Ultra Low power supply current : ...

MB15F78SP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MB15F78SP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High frequency operatio : RX synthesizer : 2550 MHz max
                                          : TX synthesizer : 1200 MHz max
• Low power supply voltage : VCC = 2.4 to 3.6 V
• Ultra Low power supply current : ICC = 5.5 mA typ.
                                                       (VCC = Vp = 2.7 V, Ta = +25, SWTX = SWRX = 0, in TX/RX locking state)
• Direct power saving function : Power supply current in power saving mode
                                                   Typ. 0.1 mA (VCC = Vp = 2.7 V, Ta = +25), Max. 10 A (VCC = Vp = 2.7 V)
• Software selectable charge pump current: 1.5 mA/6.0 mA typ.


Pinout

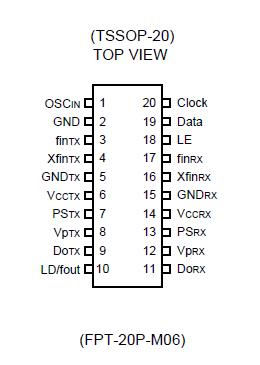

Connection Diagram


Specifications

Parameter

Symbol

Rating

Unit

Min.

Max.

Power supply voltage

VCC

-0.5

4.0

V

Vp

VCC

4.0

V

Input voltage

VI

-0.5

VCC + 0.5

V

Output voltage

LD/fout

VO

GND

VCC

V

DoTX, DoRX

VDD

GND

Vp

V

Storage temperature

Tstg

-55

+125

WARNING: Semiconductor devices can be permanently damaged by application of stress (voltage, current,
temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.


Description

The Fujitsu MB15F78SP is a serial input Phase Locked Loop (PLL) frequency synthesizer with a 2550 MHz prescaler and a 1200 MHz prescaler. A 32/33 or a 64/65 for the 2550 MHz prescaler, and a 16/17 or a 32/33 for the 1200 MHz prescaler can be selected for the prescaler that enables pulse swallow operation.

The BiCMOS process is used in MB15F78SP, as a result a supply current is typically 5.5 mA at 2.7 V. The supply voltage range is from 2.4 V to 3.6 V. A refined charge pump supplies well-balanced output current with 1.5 mA and 6 mA selectable by serial data.

The new package (BCC20) decreases an area of MB15F78SP more than 30 % comparing with the former BCC16 (for dual PLL).

MB15F78SP is ideally suited for wireless mobile communications, such as GSM.
