MB15F76UV

Note: Permanent device damage may occur if the above Absolute Maximum Ratings are exceeded. Functional
operation should be restricted to the conditions as detailed in the operational sections of this data sheet.
Exposure to absolute maximum rating conditions for extended periods may affect device reliability.

The Fujitsu MB15F76UV is a serial input Phase Locked Loop (PLL) frequency synthesizer with a 6000MHz and a 1500MHz prescalers. Both IF and RF PLL section have a 1/4 divider. And a 16/17 or a 32/33 for the 6000MHz prescaler, and a 4/5 or a 8/9 for the 1500MHz prescaler can be selected for the prescaler that enables pulse swallow operation.

The BiCMOS process is used in MB15F76UV, as a result, a supply current is typically 8.5mA typ. at 3.0V. The supply voltage range is from 2.5V to 3.6V. A refined charge pump supplies well-balanced output current with 1.5mA and 6mA selectable by serial data. Fast locking is acheived for adopting the new circuit.

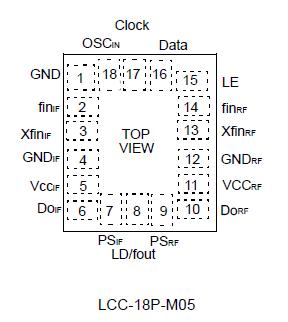

The new package(BCC18) decreases a mount area of MB15F76UV about 50% comparing with the former BCC20(for dual PLL).

MB15F76UV is ideally suited for wireless communications, such as W-LAN.
