MB15F74UL

Features: • High frequency operation : RF synthesizer : 4000 MHz Max : IF synthesizer : 2000 MHz Max• Low power supply voltage : VCC = 2.7 to 3.6 V• Ultra low power supply current : ICC = 9.0 mA Typ(VCC = Vp = 3.0 V, Ta = +25 °C, SWIF = SWRF = 0 in IF/RF locking state)• Dir...

product image

MB15F74UL Picture
See larger image
SeekIC No. : 004413178 Detail

MB15F74UL: Features: • High frequency operation : RF synthesizer : 4000 MHz Max : IF synthesizer : 2000 MHz Max• Low power supply voltage : VCC = 2.7 to 3.6 V• Ultra low power supply current ...

MB15F74UL Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MB15F74UL
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High frequency operation : RF synthesizer : 4000 MHz Max
                                            : IF synthesizer : 2000 MHz Max
• Low power supply voltage : VCC = 2.7 to 3.6 V
• Ultra low power supply current : ICC = 9.0 mA Typ
                                                      (VCC = Vp = 3.0 V, Ta = +25 °C, SWIF = SWRF = 0 in IF/RF locking state)
• Direct power saving function : Power supply current in power saving mode
                                                  Typ 0.1 A (VCC = Vp = 3.0 V, Ta = +25 °C)
                                                  Max 10 A (VCC = Vp = 3.0 V)
• Software selectable charge pump current : 1.5 mA/6.0 mA Typ
• Dual modulus prescaler : 4000 MHz prescaler (64/65 or128/129) /2000 MHz prescaler (32/33 or 64/65)
• 23 bit shift register
• Serial input binary 14-bit programmable reference divider : R = 3 to 16,383
• Serial input programmable divider consisting of:
   - Binary 7-bit swallow counter : 0 to 127
   - Binary 11-bit programmable counter : 3 to 2,047
• Built-in high-speed tuning, low-noise phase comparator, current-switching type constant current circuit
• On-chip phase control for phase comparator
• On-chip phase comparator for fast lock and low noise
• Built-in digital locking detector circuit to detect PLL locking and unlocking
• Operating temperature : Ta = -40 °C to +85 °C

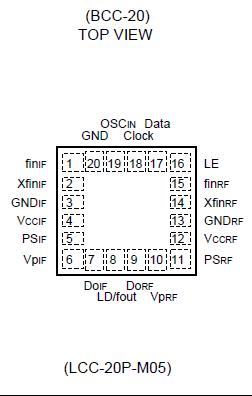

Pinout

Connection Diagram


Specifications

Parameter Symbol Rating Unit
Min. Max.
Power supply voltage VCC 0.5 4.0 V
Vp VCC 4.0 V
Input voltage VI 0.5 VCC +0.5 V
Output voltage LD/fout VO GND VCC V
DoIF, DoRF VDO GND Vp V
Storage temperature Tstg 55 +125 °C
WARNING: Semiconductor devices can be permanently damaged by application of stress (voltage, current,
temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.


Description

The Fujitsu MB15F74UL is a serial input Phase Locked Loop (PLL) frequency synthesizer with a 4000 MHz and a 2000 MHz prescalers. A 64/65 or a 128/129 for the 4000 MHz prescaler, and a 32/33 or a 64/65 for the 2000 MHz prescaler can be selected for the prescaler that enables pulse swallow operation.

The BiCMOS process is used in MB15F74UL, as a result a supply current is typically 9.0 mA at 3.0 V. The supply voltage range is from 2.7 V to 3.6 V. A refined charge pump supplies well-balanced output current with 1.5 mA and 6 mA selectable by serial date. The pin assignments are the same as MB15F78UL. Fast locking is achieved for adopting the new circuit.

The new package (BCC20) decreases a mount area of MB15F74UL more than 30% comparing with the former BCC16 (for dual PLL) .
