Product Details

Description



Features:

• High frequency operation : RF synthesizer : 1300 MHz Max
                                           : IF synthesizer : 350 MHz Max
• Low power supply voltage : VCC = 2.4 V to 3.6 V
• Ultra low power supply current : ICC = 2.5 mA Typ
                                                     (VCC = 2.7 V, SWIF = SWRF = 0, Ta = +25 °C, in IF, RF locking state)
• Direct power saving function : Power supply current in power saving mode
                                                   Typ 0.1 A (VCC = 2.7 V, Ta = +25 °C)
                                                   Max 10 A (VCC = 2.7 V)
• Software selectable charge pump current : 1.5 mA/6.0 mA Typ
• Dual modulus prescaler : 1300 MHz prescaler (64/65 or 128/129 ) /350 MHz prescaler (8/9 or 16/17)
• 23 bit shift resister
• Serial input 14-bit programmable reference divider : R = 3 to 16,383
• Serial input programmable divider consisting of :
   - Binary 7-bit swallow counter : 0 to 127
   - Binary 11-bit programmable counter : 3 to 2,047
• On-chip phase control for phase comparator
• On-chip phase comparator for fast lock and low noise
• Built-in digital locking detector circuit to detect PLL locking and unlocking.
• Operating temperature : Ta = -40 °C to +85 °C
• Serial data format compatible with MB15F72UL
• Ultra small package BCC18 (2.4 mm ´ 2.7 mm ´ 0.45 mm)

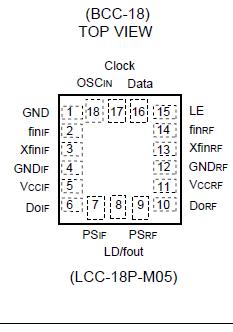

Pinout

Connection Diagram


Specifications

Parameter Symbol Rating Unit
Min. Max.
Power supply voltage VCC 0.5 4.0 V
Input voltage VI 0.5 VCC +0.5 V
Output voltage LD/fout VO GND VCC V
DoIF, DoRF VDO GND VCC V
Storage temperature Tstg 55 +125 °C
WARNING: Semiconductor devices can be permanently damaged by application of stress (voltage, current,
temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.


Description

The Fujitsu MB15F72UV is a serial input Phase Locked Loop (PLL) frequency synthesizer with a 1300 MHz and a 350 MHz prescalers. A 64/65 or a 128/129 for the 1300 MHz prescaler, and a 8/9 or a 16/17 for the 350 MHz prescaler can be selected for the prescaler that enables pulse swallow operation.

The BiCMOS process is used in MB15F72UV, as a result a supply current is typically 2.5 mA at 2.7 V. The supply voltage range is from 2.4 V to 3.6 V. A refined charge pump supplies well-balanced output current with 1.5 mA and 6 mA selectable by serial data. The data format is the same as the previous one MB15F02SL, MB12F72SP/UL. Fast locking is achieved for adopting the new circuit.

MB15F72UV is in the new small package (BCC18) , which decreases a mount area of MB15F72UV about 50% comparing with the former BCC20 (for dual PLL) .

MB15F72UV is ideally suited for wireless mobile communications, such as CDMA.
