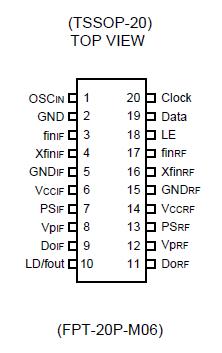

MB15F72UL

• High frequency operation : RF synthesizer : 1300 MHz Max.
                                            : IF synthesizer : 350 MHz Max.
• Low power supply voltage : V_CC = 2.4 to 3.6 V
• Ultra low power supply current : I_CC = 2.5 mA Typ.
                                                      (V_CC = Vp = 2.7 V, SW_IF = SW_RF = 0, Ta = +25 °C, in IF, RF locking state)
• Direct power saving function : Power supply current in power saving mode
                                                   Typ. 0.1 A (V_CC = Vp = 2.7 V, Ta = +25 °C)
                                                   Max. 10 A (V_CC = Vp = 2.7 V)
• Software selectable charge pump current : 1.5 mA/6.0 mA Typ.
• Dual modulus prescaler : 1300 MHz prescaler (64/65 or 128/129 ) /350 MHz prescaler (8/9 or 16/17)
• 23 bit shift resister
• Serial input 14-bit programmable reference divider : R = 3 to 16,383
• Serial input programmable divider consisting of :
  - Binary 7-bit swallow counter : 0 to 127
  - Binary 11-bit programmable counter : 3 to 2,047
• On-chip phase control for phase comparator
• On-chip phase comparator for fast lock and low noise
• Built-in digital locking detector circuit to detect PLL locking and unlocking.
• Operating temperature : Ta = -40 °C to +85 °C
• Serial data format compatible with MB15F02SL
• Small package BCC20 (3.4 mm ´ 3.6 mm ´ 0.6 mm)

The Fujitsu MB15F72UL is a serial input Phase Locked Loop (PLL) frequency synthesizer with a 1300 MHz and a 350 MHz prescalers. A 64/65 or a 128/129 for the 1300 MHz prescaler, and a 8/9 or a 16/17 for the 350 MHz prescaler can be selected for the prescaler that enables pulse swallow operation.

The BiCMOS process is used in MB15F72UL, as a result a supply current is typically 2.5 mA at 2.7 V. The supply voltage range is from 2.4 V to 3.6 V. A refined charge pump supplies well-balanced output current with 1.5 mA and 6 mA selectable by serial data. The data format is the same as the previous one MB15F02SL, MB12F72SP. Fast locking is achieved for adopting the new circuit.

The new package (BCC20) decreases a mount area of MB15F72UL more than 30% comparing with the former BCC16 (for dual PLL) .

MB15F72UL is ideally suited for wireless mobile communications, such as CDMA.
