Product Details

Description



Features:

• High frequency operation: RX synthesizer: 2500 MHz max
                                             TX synthesizer: 1100 MHz max
• Low power supply voltage: VCC = 2.4 to 3.6 V
• Ultra Low power supply current: ICC = 7.0 mA typ. (VCC = 2.7 V, Ta = +25°C, in TX, RX locking state)
                                                       ICC = 7.5 mA typ. (VCC = 3.0 V, Ta = +25°C, in TX, RX locking state)
• Direct power saving function: Power supply current in power saving mode
                                                  Typ. 0.1 mA (VCC = 3V, Ta = +25°C), Max. 10 A (VCC = 3V)
• Dual modulus prescaler: 2500 MHz prescaler (32/33 or 64/65)/1100 MHz prescaler (16/17 or 32/33)
• Serial input 14-bit programmable reference divider: R = 3 to 16,383
• Serial input programmable divider consisting of:
   - Binary 7-bit swallow counter: 0 to 127
   - Binary 11-bit programmable counter: 3 to 2,047
• Software selectable charge pump current
• Onchip phase control for phase comparator
• Operating temperature: Ta = 40 to +85°C

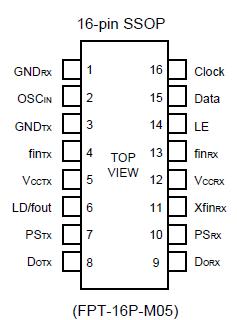

Pinout

Connection Diagram


Specifications

Parameter Symbol Rating Unit Remark
Min. Max.
Power supply voltage VCC 0.5 +4.0 V



Input voltage VI 0.5 VCC +0.5 V



Output voltage VO GND VCC V



Storage temperature Tstg 55 +125 °C



WARNING: Semiconductor devices can be permanently damaged by application of stress (voltage, current,
temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings


Description

The Fujitsu MB15F08SL is a serial input Phase Locked Loop (PLL) frequency synthesizer with a 2500 MHz and a 1100 MHz prescalers. The 2500 MHz prescaler, and 1100 MHz prescaler have a dual modulus division ratio of 32/33 or 64/65 and 16/17 or 32/33 enabling pulse swallow operation.

The supply voltage range of MB15F08SL is between 2.4 V and 3.6 V.

The MB15F08SL uses the latest BiCMOS process. As a result, the supply current is typically 7.0 mA at 2.7 V. A refined charge pump supplies a well-balanced output current of 1.5 mA or 6 mA. The charge pump current is selectable by serial data.

MB15F08SL is ideally suited for wireless mobile communications.
