MB15F02L

Features: • High frequency operation RF synthesizer: 1.2 GHz max. / IF synthesizer: 250 MHz max.• Low power supply voltage: VCC = 2.7 to 3.6 V• Very Low power supply current : ICC = 4.0 mA typ. (VCC = 3 V)• Power saving function : Supply current at power saving mode Typ.0.1...

product image

MB15F02L Picture
See larger image
SeekIC No. : 004413165 Detail

MB15F02L: Features: • High frequency operation RF synthesizer: 1.2 GHz max. / IF synthesizer: 250 MHz max.• Low power supply voltage: VCC = 2.7 to 3.6 V• Very Low power supply current : ICC ...

MB15F02L Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MB15F02L
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High frequency operation RF synthesizer: 1.2 GHz max. / IF synthesizer: 250 MHz max.
• Low power supply voltage: VCC = 2.7 to 3.6 V
• Very Low power supply current : ICC = 4.0 mA typ. (VCC = 3 V)
• Power saving function : Supply current at power saving mode Typ.0.1vA (VCC = 3 V), Max.10vA (IPS1 = IPS2)
• Dual modulus prescaler : 1.2 GHz prescaler (64/65,128/129) , 250 MHz prescaler (16/17,32/33)
• Serial input 14-bit programmable reference divider: R = 5 to 16,383
• Serial input 18-bit programmable divider consisting of:
- Binary 7-bit swallow counter: 0 to 127
- Binary 11-bit programmable counter: 5 to 2,047
• Onchip high performance charge pump circuit and phase comparator, achieving highspeed lockup and low phase noise
• Onchip phase control for phase comparator
• Wide operating temperature: Ta = 40 to 85°C


Pinout

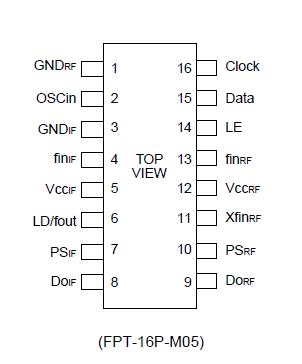

Connection Diagram


Specifications

Parameter Symbol Rating Unit Remark
Min. Max.
Power supply voltage VCC 0.5 +4.0 V



Input voltage VI 0.5 VCC +0.5 V



Output voltage VO 0.5 VCC +0.5 V



Output current IO 10 +10 mA Except Do output
Ido 25 +25 mA Do output
Storage temperature TSTG 55 +125 °C



WARNING: Semiconductor devices can be permanently damaged by application of stress (voltage, current,
temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.


Description

The Fujitsu MB15F02L is a serial input Phase Locked Loop (PLL) frequency synthesizer with a 1.2 GHz and a 250 MHz prescalers. A 64/65 or a 128/129 for the 1.2 GHz prescaler, and a 16/17 or a 32/33 for 250 MHz prescaler can be selected that enables pulse swallow operation.

The latest BiCMOS process technology is used in MB15F02L, resuItantly a supply current is limited as low as 4.0 mA typ. at a supply voltage of 3.0 V.

Furthermore, a super charger circuit is included to provide a fast tuning as well as low noise performance. As a result of this, MB15F02L is ideally suitable for digital mobile communications, such as GSM (Global System for Mobile Communications).
