Product Details

Description



Features:

• High frequency operation RF synthesizer : 1.2 GHz max.
                                            IF synthesizer : 500 MHz max.
• Low power supply voltage: VCC = 2.7 to 3.6V
• Very Low power supply current : ICC = 6.0 mA typ. (VCC = 3 V)
• Power saving function : IPS1 = IPS2 = 0.1A typ.
• Serial input 14bit programmable reference divider: R = 5 to 16,383
• Serial input 18bit programmable divider consisting of:
   - Binary 7bit swallow counter: 0 to 127
   - Binary 11bit programmable counter: 5 to 2,047
• Onchip high performance charge pump circuit and phase comparator, achieving highspeed lockup and low phase noise
• Wide operating temperature: Ta =-40 to 85°C
• Plastic 16-pin SSOP package (FPT-16P-M05) and 16-pin BCC package (LCC-16P-M03)


Pinout

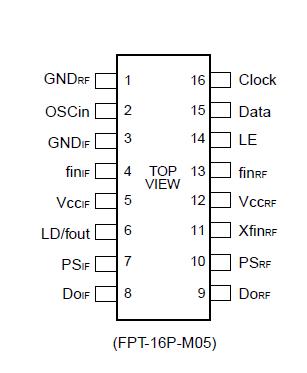

Connection Diagram


Specifications

Parameter Symbol Rating Unit Remark
Power supply voltage VCC 0.5 to +4.0 V



Input voltage VI 0.5 to VCC +0.5 V



Output voltage VO 0.5 to VCC +0.5 V



Storage temperature TSTG 55 to +125 °C



WARNING: Semiconductor devices can be permanently damaged by application of stress (voltage, current,
temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.


Description

The Fujitsu MB15F02 is a serial input Phase Locked Loop (PLL) frequency synthesizer with a 2.0 GHz and a 500 MHz prescalers. A 64/65 or a 128/129 for the 1.2 GHz prescaler, and a 16/17 or a 32/33 for 500 MHz prescaler can be selected that enables pulse swallow operation.

The latest BiCMOS process technology is used in MB15F02, resuItantly a supply current is limited as low as 6.0 mA typ. at a supply voltage of 3.0 V.

Furthermore, a super charger circuit is included to provide a fast tuning as well as low noise performance. As a result of this, MB15F02 is ideally suitable for digital mobile communications, such as GSM (Global System for Mobile Communications).
