Product Details

Description

Features:

• High frequency operation: 2.5 GHz max
• Low power supply voltage: V_CC = 2.4 to 3.6 V
• Ultra Low power supply current: I_CC = 3.5 mA typ. (VCC = Vp = 2.7 V, Ta = +25, in locking state)
                                                       I_CC = 4.0 mA typ. (VCC = Vp = 3.0 V, Ta = +25, in locking state)
• Direct power saving function: Power supply current in power saving mode
   Typ. 0.1 mA (V_CC = Vp = 3.0 V, Ta = +25), Max. 10 A (VCC = Vp = 3.0 V)
• Dual modulus prescaler: 32/33 or 64/65
• Serial input 14-bit programmable reference divider: R = 3 to 16,383
• Serial input programmable divider consisting of:
   - Binary 7-bit swallow counter: 0 to 127
- Binary 11-bit programmable counter: 3 to 2,047
• Software selectable charge pump current
• On-chip phase control for phase comparator
• Operating temperature: Ta = 40 to +85
• Pin compatible with MB15E07, MB15E07L

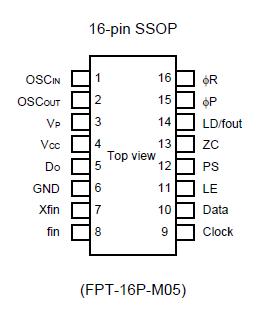

Pinout

Connection Diagram

Specifications

Parameter	Symbol	Condition	Rating		Unit	Remark
Parameter	Symbol	Condition	Min.	Max.	Unit	Remark
Power supply voltage	V_CC		0.5	4.0	V
Power supply voltage	V_P		V_CC	6.0	V
Input voltage	V_I		0.5	V_CC +0.5	V
Output voltage	V_O	Except Do	GND	V_CC	V
Output voltage		Do	GND	V_P	V
Storage temperature	T_stg		55	+125

WARNING: Semiconductor devices can be permanently damaged by application of stress (voltage, current,
temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.

Description

The Fujitsu MB15E07SL is a serial input Phase Locked Loop (PLL) frequency synthesizer with a 2.5 GHz prescaler.

The MB15E07SL has a dual modulus division ratio of 32/33 or 64/65 enabling pulse swallowing operation.

The supply voltage range is between 2.4 V and 3.6 V. The MB15E07SL uses the latest BiCMOS process, as a result the supply current is typically 3.5 mA at 2.7 V. A refined charge pump supplies well-balanced output currents of 1.5 mA and 6 mA. The charge pump current is selectable by serial data.

MB15E07SL is ideally suited for wireless mobile communications, such as GSM (Global System for Mobile Communications) and PCS.
