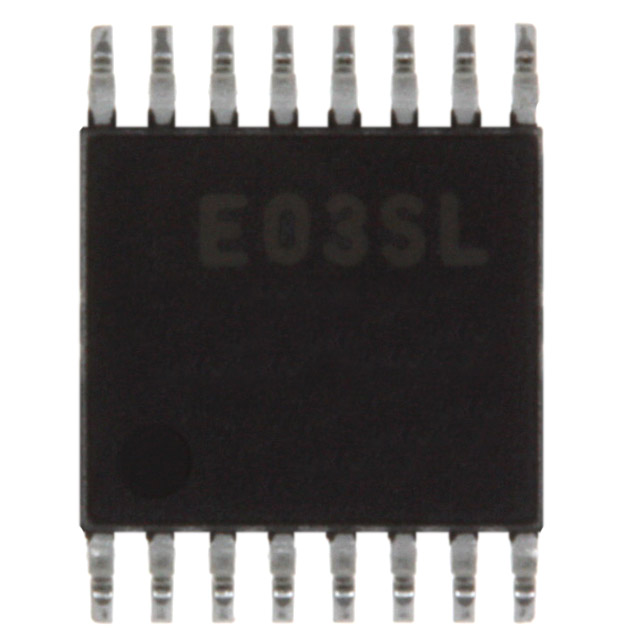

product image

MB15E05L Picture
See larger image
SeekIC No. : 004413157 Detail

MB15E05L: Features: • High frequency operation: 2.0 GHz max.• Low power supply voltage: VCC = 2.7 to 3.6 V• Very Low power supply current : ICC = 4.0 mA typ. (VCC = 3 V)• Power saving ...

MB15E05L Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MB15E05L
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High frequency operation: 2.0 GHz max.
• Low power supply voltage: VCC = 2.7 to 3.6 V
• Very Low power supply current : ICC = 4.0 mA typ. (VCC = 3 V)
• Power saving function : IPS = 0.1A typ.(VCC = 3 V)
• Pulse swallow function: 64/65 or 128/129
• Serial input 14-bit programmable reference divider: R = 5 to 16,383
• Serial input 18-bit programmable divider consisting of:
   - Binary 7-bit swallow counter: 0 to 127
   - Binary 11-bit programmable counter: 5 to 2,047
• Onchip high performance charge pump circuit and phase comparator, achieving highspeed lockup and low phase noise.
• Wide operating temperature: Ta = 40 to 85
• Plastic 16-pin SSOP package (FPT-16P-M05) and 16-pin BCC package (LCC-16P-M02)


Pinout

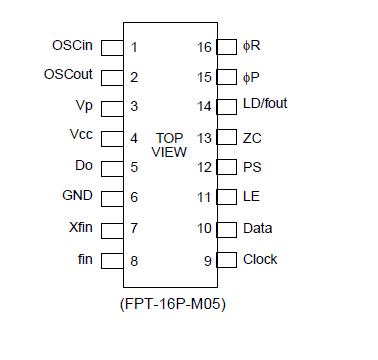

Connection Diagram


Specifications

Parameter

Symbol

Rating

Unit

Remark

Min.

Max.

Power supply voltage

VCC

0.5

4.0

V

VP

VCC

6.0

V

Input voltage

VI

0.5

VCC +0.5

V

Output voltage

VO

0.5

VCC +0.5

V

Output voltage

IO

10

+10

mA

Except Do output

Ido

25

+25

mA

Do output

Open drain voltage

VooP

0.5

7.0

V

Storage temperature

Tstg

55

+125



WARNING: Semiconductor devices can be permanently damaged by application of stress (voltage, current,
temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.




Description

The Fujitsu MB15E05L is serial input Phase Locked Loop (PLL) frequency synthesizer with a 2.0 GHz prescaler. A 64/65 or a 128/129 can be selected for the prescaler that enables pulse swallow operation.

The latest BiCMOS process technology of MB15E05L is used, resuItantly a supply current is limited as low as 4.0 mA typ. This operates with a supply voltage of 3.0 V (typ.)

Furthermore, a super charger circuit is included to get a fast tuning as well as low noise performance. As a result of this, MB15E05L is ideally suitable for digital mobile communications, such as DCS 1800 and PCS 1900.
