Features:

• High frequency operation: 220 MHz max @VDD = 1.0 V to 1.5 V
                                             330 MHz max @VDD = 1.2 V to 1.5 V
                                             450 MHz max @VDD = 1.3 V to 1.5 V
• Single power supply : VDD = 1.0 to 1.5 V
• Power saving function
• Pulse swallow function: 64/65
• Serial input 14-bit programmable reference divider: R = 5 to 16,383
• Serial input 18-bit programmable divider consisting of:
   - Binary 6-bit swallow counter: 0 to 63
   - Binary 12-bit programmable counter: 5 to 4,095
• Wide operating temperature: Ta = 20 to 60

Pinout

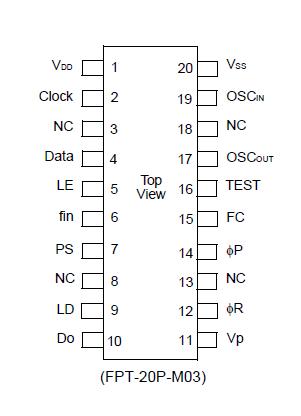

Connection Diagram

Specifications

Parameter	Symbol	Rating		Unit	Remark
Parameter	Symbol	Min.	Max.	Unit	Remark
Power supply voltage	V_DD, V_P	GND0.5	+2.0	V
Power supply voltage	V_IN	GND0.5	V_DD +0.5	V
Input voltage	V_OUT	GND0.5	V_DD +0.5	V
Output current	_IOUT	10	+10	mA
Storage temperature	T_stg	40	+125

WARNING: Semiconductor devices can be permanently damaged by application of stress (voltage, current,
temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.

Description

The Fujitsu MB15C02 is a serial input Phase Locked Loop (PLL) frequency synthesizer with a prescaler. A 64/65 division is available for the prescaler that enables pulse swallow operation.

This operates with a supply voltage of 1.0 V (min.).

MB15C02 is suitable for mobile communications, such as paging systems.
