Product Details

Description

Features:

• Low power supply voltage: V_CC = 2.7 to 5.5 V
• High operating frequency: f_{IN MAX} = 1.1 GHz (V_{IN MIN} = 10dBm)
• Pulse swallow function: 64/65 or 128/129
• Low supply current: I_CC = 7 mA typ.
• Serial input 18-bit programmable divider consisting of:
   Binary 7-bit swallow counter: 0 to 127
   Binary 11-bit programmable counter: 16 to 2047
• Serial input 15-bit programmable reference divider consisting of:
   Binary 14-bit programmable reference counter: 8 to 16383
  1-bit switch counter (SW) sets divide ratio of prescaler

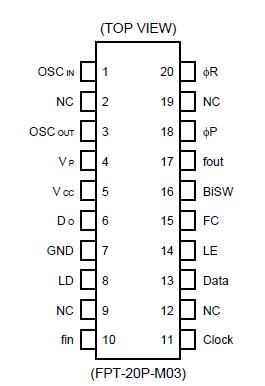

Pinout

Connection Diagram

Specifications

Parameter	Symbol	Rating	Unit
Power supply voltage	V_CC	0.5 to +7.0	V
Power supply voltage	V_P	V_CC to 10.0	V
Output voltage	V_OUT	0.5 to V_CC +0.5	V
Open-drain Voltage	V_OOP	0.5 to 0.8	V
Output Current	I_OUT	± 10	mA
Storage Temperature	T_STG	55 to +125

WARNING: Permanent device damage may occur if the above Absolute Maximum Ratings are exceeded.
Functional operation should be restricted to the conditions as detailed in the operational sections of
this data sheet. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.

Description

The Fujitsu MB1511 is a single chip serial input PLL frequency synthesizer designed for VHF tuner and cellular telephone applications.

MB1511 contains a 1.1 GHz dual modulus prescaler which enables pulse swallow function, and an analog switch to speedup lock up time.

MB1511 operates supply voltage of 3.0 V typ. and dissipates 7 mA typ. of current realized through the use of Fujitsu's unique U-ESBIC Bi-CMOS technology.

The MB1511 is housed in SSOP package, this enables high integration.
