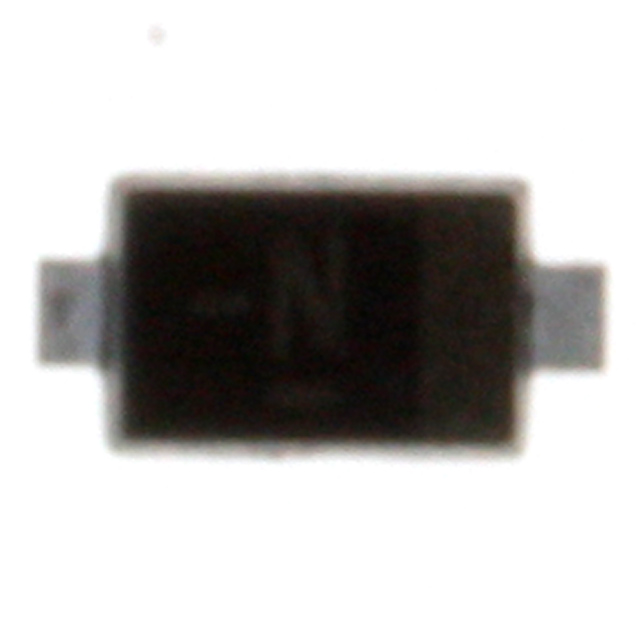

See larger image

SeekIC No. : 003425095 Detail

MAZS056GML: DIODE ZENER 5.6V 150MW SSMINI-2

MAZS056GML Data Sheet

Get Latest Price

Part Number:: MAZS056GML
Mfg:
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/10/17

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

MAZS000 evaluate
Features: • SS-mini type 2-pin package• Low noise type• VZ rank classified (VZ =...
MAZS024 evaluate
Features: • SS-mini type 2-pin package• Low noise type• VZ rank classified (VZ =...
MAZS02400L evaluate
DIODE ZENER 2.4V 150MW SSMINI-2

Product Details

Quick Details

Series:	-	Manufacturer:	Panasonic Electronic Components - Semiconductor Products
Voltage - Zener (Nom) (Vz):	5.6V	Voltage - Forward (Vf) (Max) @ If:	1V @ 10mA
Emitter- Base Voltage VEBO :	- 3 V	Current - Reverse Leakage @ Vr:	500nA @ 2.5V
Tolerance:	±3%	Power - Max:	150mW
Impedance (Max) (Zzt):	40 Ohm	Mounting Type:	Surface Mount
Package / Case:	SC-79, SOD-523	Supplier Device Package:	SSMini2-F4

Description

Series: -
Mounting Type: Surface Mount
Voltage - Zener (Nom) (Vz): 5.6V
Tolerance: ±3%
Impedance (Max) (Zzt): 40 Ohm
Packaging: Cut Tape (CT)
Package / Case: SC-79, SOD-523
Current - Reverse Leakage @ Vr: 500nA @ 2.5V
Power - Max: 150mW
Manufacturer: Panasonic Electronic Components - Semiconductor Products
Voltage - Forward (Vf) (Max) @ If: 1V @ 10mA
Supplier Device Package: SSMini2-F4

Parameters:

Technical/Catalog Information	MAZS056GML
Vendor	Panasonic - SSG
Category	Discrete Semiconductor Products
Voltage - Zener (Nom) (Vz)	5.6V
Power - Max	150mW
Impedance (Max) (Zzt)	40 Ohm
Voltage - Forward (Vf) (Max) @ If	1V @ 10mA
Current - Reverse Leakage @ Vr	500nA @ 2.5V
Tolerance	-
Mounting Type	Surface Mount
Package / Case	SS Mini 2P
Packaging	Tape & Reel (TR)
Operating Temperature	-55°C ~ 150°C
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	MAZS056GML MAZS056GML MAZS056GMLTR ND MAZS056GMLTRND MAZS056GMLTR
