Features: +26.8dBm Input IP3
+13dBm Input 1dB Compression Point
825MHz to 915MHz RF Frequency Range
70MHz to 170MHz IF Frequency Range
725MHz to 1085MHz LO Frequency Range
2dB Conversion Gain
12dB Noise Figure
-5dBm to +5dBm LO Drive
5V Single-Supply Operation
Built-In LO Switch
ESD Protection
Internal RF and LO Baluns for Single-Ended InputsApplicationGSM850/GSM900 2G and 2.5G EDGE Base
Station Receivers
Cellular cdmaOneTM and cdma2000TM Base
Station Receivers
TDMA and Integrated Digital Enhanced
Network (iDEN)TM Base Station Receivers
Digital and Spread-Spectrum Communication
Systems

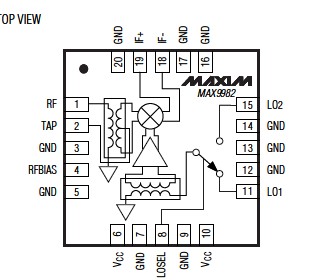

Microwave LinksPinout
SpecificationsVcc.......................................................................-0.3V to +5.5V
IF+, IF-, RFBIAS, LOSEL.............................-0.3V to (VCC + 0.3V)
TAP ...................................................................................+5.0V
RFBIAS Current....................................................................5mA
RF, LO1, LO2 Input Power .............................................+20dBm
Continuous Power Dissipation (TA = +70°C)
20-Pin QFN (derate 20.8mW/°C above TA = +70°C) ....1.66W
Operating Temperature Range .........................40°C to +85°C
Junction Temperature.....................................................+150°C
Storage Temperature Range ..........................-65°C to +150°C
Lead Temperature (soldering, 10s) ................................+300°C
Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
DescriptionThe MAX9982 fully integrated SiGe mixer is optimized to meet the demanding requirements of GSM850, GSM900, and CDMA850 base-station receivers. Each high-linearity device includes a local oscillator (LO) switch, LO driver, and ctive mixer. On-chip baluns are also integrated to allow for single-ended RF and LO inputs. Since the active mixer provides 2dB of conversion gain, the MAX9982 effectively replaces the IF amplifier stage, which typically follows most passive mixer implementations.
The MAX9982 provides exceptional linearity with an input IP3 of greater than +26dBm. The integrated LO driver allows for a wide range of LO drive levels from -5dBm to +5dBm. In addition, the built-in switch enables rapid LO selection of less than 250ns, as needed for GSM frequency-hopping applications.
The MAX9982 is available in a 20-pin QFN package (5mm ✕ 5mm) with an exposed paddle and is specified over the -40°C to +85°C extended temperature range.
MAX9982 Data Sheet
