MAX997

* Ultra-Fast, 4.5ns Propagation Delay
* Ideal for +3V and +5V Single-Supply Applications
* Beyond-the-Rails Input Voltage Range
* Low, 5mA Supply Current (MAX997/MAX999)
* 3.5mV Internal Hysteresis for Clean Switching
* Output Latch (MAX961/MAX963)
* TTL/CMOS-Compatible Outputs
* 270A Shutdown Current per Comparator (MAX961/MAX963/MAX964/MAX997)
* Available in Space-Saving Packages:

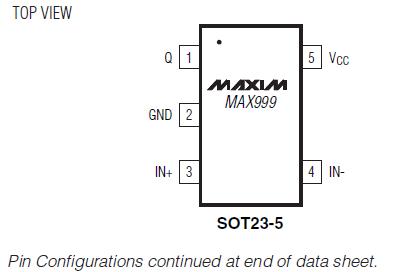

 5-Pin SOT23 (MAX999)
 8-Pin MAX (MAX961/MAX962/MAX997)
 16-Pin QSOP (MAX964)

The MAX961MAX964/MAX997/MAX999 are low-power, ultra-high-speed comparators with internal hysteresis. These devices are optimized for single +3V or +5V operation. The input common-mode range extends 100mV Beyond-the-Rails™, and the outputs can sink or source 4mA to within 0.52V of GND and VCC. Propagation delay of MAX997 is 4.5ns (5mV overdrive), while supply current is 5mA per comparator.

The MAX961/MAX963/MAX964 and MAX997 have a shutdown mode in which they consume only 270A supply current per comparator. The MAX961/MAX963
provide complementary outputs and a latch-enable feature. Latch enable allows the user to hold a valid comparator output. The MAX999 is available in a tiny
SOT23-5 package. The single MAX961/MAX997 and dual MAX962 are available in space-saving 8-pin MAX packages.
