MAX9952

The MAX9951/MAX9952 dual parametric measurement units (PMUs) feature a small package size, wide force and measurement range, and high accuracy, making the devices ideal for automatic test equipment (ATE) and other instrumentation that requires a PMU per pin or per site. The MAX9951/MAX9952 force or measure voltages in the -2V to +7V through -7V to +13V ranges, dependent upon the supply voltage (VCC and VEE). The devices handle supply voltages of up to +30V (VCC to VEE) and a 20V device-under-test (DUT) voltage swing at full current. The MAX9951/MAX9952 also force or measure currents up to ±64mA with a lowest full-scale range of ±2A. Integrated support circuitry facilitates use of an external buffer amplifier for current ranges greater than ±64mA.

A voltage proportional to the measured output voltage or current is provided at the MSR_ output. Integrated comparators MAX9952, with externally set voltage thresholds, provide detection for both voltage and current levels. The MSR_ and comparator outputs can be placed in a high-impedance state. Separate FORCE and SENSE connections of MAX9952 are short-circuit protected for voltages from (VEE - 0.3V) to (VCC + 0.3V). The FORCE output also features a low-leakage, high-impedance state.

Integrated voltage clamps of MAX9952 limit the force output to levels set externally. The force-current or the measure-current voltage can be offset -0.2V to +4.4V (IOS). This feature allows for the centering of the control or measured signal within the external DAC or ADC range. The MAX9951D/MAX9952D feature an integrated 10k force-sense resistor between FORCE_ and SENSE_.

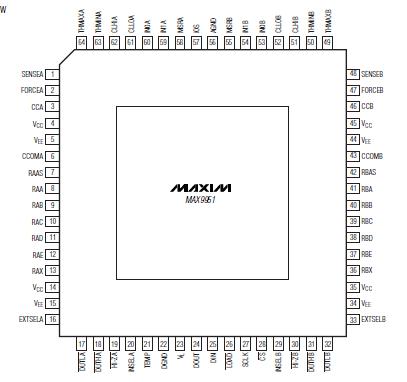

The MAX9951F/MAX9952F have no internal force-sense resistor. These devices are available in a 64-pin, 10mm x 10mm, 0.5mm pitch TQFP package with an exposed 8mm x 8mm die pad on the top (MAX9951) or the bottom (MAX9952) of the package for efficient heat removal. The exposed pad is internally connected to VEE. The MAX9951/MAX9952 are specified over the commercial 0°C to +70°C temperature range.
