MAX9890

High-End Notebook Audio
PDAs
Portable DVD Players
Cell Phones
Portable MP3 Players

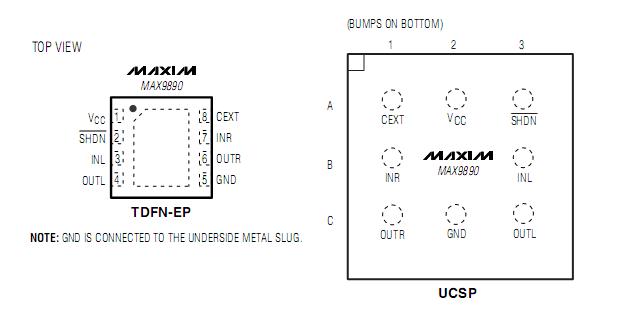

The MAX9890 provides click-and-pop suppression for devices such as CODECs with integrated headphone amplifiers that lack a clickless/popless startup/power-up or shutdown/power down. The device controls the ramping of the DC bias voltage on the output-coupling capacitors and the application of the audio signal to ensure that no audible transients are present at the headphones. The MAX9890A features a 200ms startup time for use with up to 100µF coupling capacitors. The MAX9890B features a 330ms startup time for use with greater than 100µF coupling capacitors.The MAX9890 consumes 14µA of supply current and 0.001µA in shutdown, while contributing less than 0.003% THD+N into a 32Ω load. ESD (Human Body Model) protection circuitry on the outputs protect the MAX9890 and devices further up the signal chain from ESD strikes up to ±8kV.The MAX9890 is available in a miniature (1.5mm ×1.5mm ×0.6mm) 9-bump chip-scale package (UCSP™),as well as an 8-pin TDFN package (3mm ×3mm ×0.8mm), and is specified for operation over the -40°C to +85°C extended temperature range.
