Product Details

Description



Features:

No DC-Blocking Capacitors Required-Provides Industry's Most Compact Notebook Audio Solution
PC2001 Compliant
5V Single-Supply Operation
Class AB 2.6W Stereo BTL Speaker Amplifiers
110mW DirectDrive Headphone Amplifiers
High 90dB PSRR
Low-Power Shutdown Mode
Industry-Leading Click-and-Pop Suppression
Low 0.01% THD+N at 1kHz
Short-Circuit and Thermal Protection
Selectable Gain Settings
Analog Volume Control (MAX9750)
Beep Input with Glitch Filter (MAX9750)
2:1 Stereo Input MUX (MAX9751)
±8kV ESD-Protected Headphone Driver Outputs
Available in Space-Saving, Thermally Efficient Packages 28-Pin Thin QFN (5mm x 5mm x 0.8mm) 28-Pin TSSOP-EP


Application

Notebook PCs
Flat-Panel TVs
Tablet PCs
PC Displays
Portable DVD
LCD Projectors




Pinout

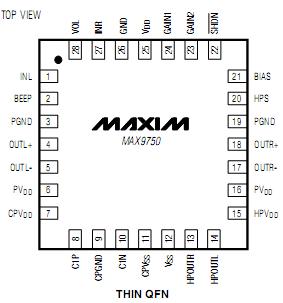

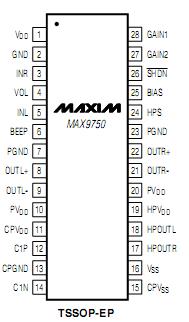

Connection Diagram Connection Diagram




Specifications

Supply Voltage (VDD, PVDD, HPVDD, CPVDDto GND)..........+6V
GND to PGND.....................................................................±0.3V
CPVSS, C1N, VSSto GND.........................-6.0V to (GND + 0.3V)
HPOUT_ to GND....................................................................±3V
Any Other Pin.............................................-0.3V to (VDD+ 0.3V)
Duration of OUT_ Short Circuit to GND or PVDD........Continuous
Duration of OUT_+ Short Circuit to OUT_-.................Continuous
Duration of HPOUT_ Short Circuit to GND,
VSSor HPVDD.........................................................Continuous
Continuous Current (PVDD, OUT_, PGND)...........................1.7A
Continuous Current (CPVDD, C1N, C1P, CPVSS, VSS, HPVDD,
HPOUT_).......................................................................850mA
Continuous Input Current (All Other Pins)........................±20mA
Continuous Power Dissipation (TA= +70°C)
28-Pin Thin QFN (derate 20.8mW/°C above +70°C)..1667mW
28-Pin TSSOP-EP (derate 23.8mW/°C above +70°C).1904mW
Junction Temperature......................................................+150°C
Operating Temperature Range...........................-40°C to +85°C
Storage Temperature Range.............................-65°C to +150°C
Lead Temperature (soldering, 10s).................................+300°C


Description

The MAX9750/MAX9751/MAX9755 combine a stereo,2.6W audio power amplifier and stereo DirectDrive 110mW headphone amplifier in a single device. The headphone amplifier uses Maxim's patented DirectDrive architecture that produces a ground-referenced output from a single supply, eliminating the need for large DC-blocking capacitors, saving cost, space, and component height. A high 90dB PSRR and low 0.01% THD+N ensures clean, low-distortion amplification of the audio signal.The MAX9750 features an analog volume control, and a BEEP input. The MAX9751 features a 2:1 input multiplexer,allowing multiple audio sources to be selected. All devices feature a single-supply voltage, a shutdown mode, logic-selectable gain, and a headphone sense input. Industry-leading click-and-pop suppression eliminates audible transients during power and shutdown cycles.The MAX9750/MAX9751/MAX9755 are offered in space-saving, thermally efficient 28-pin thin QFN (5mm x 5mm x 0.8mm) and 28-pin TSSOP-EP packages. MAX9750 have thermal-overload and output short-circuit protec-tion, and are specified over the extended -40°C to +85°C temperature range.
