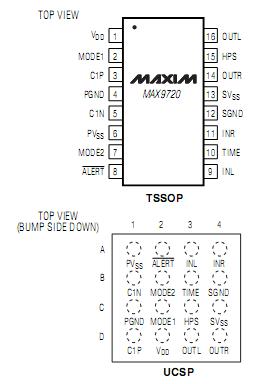

MAX9720

The MAX9720 stereo headphone amplifier combines Maxim's patented DirectDrive architecture and SmartSense™, an automatic mono/stereo detection fea-ture. Conventional headphone amplifiers MAX9720 require a bulky DC-blocking capacitor between the headphone and the amplifier. DirectDrive produces a ground-referenced out-put from a single supply, eliminating the need for large DC-blocking capacitors, saving cost, board space, and component height.SmartSense automatically detects the presence of a short at either the left or right amplifier output. Under a fault condition, the shorted output is automatically dis-abled and the stereo input signal is automatically mixed and routed to the remaining active channel. This feature is useful in cell phone and PDA applications where a variety of headphone jacks with unknown loads can be inserted into the headphone jack socket. SmartSense prevents both damage to the amplifier and eliminates battery drain into a shorted load.The MAX9720 delivers up to 50mW per channel into a 16Ω load and has an ultra-low 0.003% THD+N. A high (92dB at 217kHz) power-supply rejection ratio (PSRR) allows the device to operate from noisy digital supplies without additional power conditioning. The gain of the MAX9720 is set internally, further reducing component count. Two gain options are available (-1V/V, MAX9720A and -1.41V/V, MAX9720B). The headphone outputs include a comprehensive click-and-pop circuitry that eliminates audible glitches on startup and shutdown. A shutdown mode provides a fast 250µs turn-on time.The MAX9720 operates from a single 1.8V to 3.6V supply and consumes only 5mA of supply current. The MAX9720 also features thermal overload protection,and is specified over the extended -40°C to +85°C tem-perature range. The MAX9720 is available in a tiny (2mm x 2mm x 0.6mm) 16 bump chip-scale package(UCSP™) and a 16-pin TSSOP package.
