MAX9476

VDD to GND.............................................................-0.3V to +4.0V
VDDP to GNDP.........................................................-0.3V to +4.0V
SHDN    , REO, REIN, X1, X2, CLK_ to GND ...-0.3V to (VDD + 0.3V)
LP1, SETI to GNDP........................................-0.3V to (VDD + 0.3V)
LP2 Internally Connected to GNDP
Short-Circuit Duration of Outputs ...............................Continuous

Continuous Power Dissipation (TA = +70°C)
24-Pin TSSOP (derate 12.2mW/°C above +70°C) .........976mW
Operating Temperature Range .........................-40°C to +85°C
Maximum Junction Temperature .....................................+150°C
Storage Temperature Range ..........................-60°C to +150°C
ESD Rating (Human Body Model) ........................................±2kV
Lead Temperature (soldering, 10s) ...............................+300°C

The MAX9476 low-cost, high-performance clock synthesizer with an 8kHz input reference clock provides six buffered LVTTL clock outputs at 35.328MHz. The clock synthesizer can be used to generate the clocks for systems using T1, E1, T3, E3, and xDSL.

The MAX9476 features a phase-lock loop (PLL) that uses a voltage-controlled crystal oscillator (VCXO). The internal PLL phase locks the external crystal (35.328MHz) to the 8kHz input reference clock. In addition, this device generates a jitter-suppressed output that provides a better source for the reference clock relay.

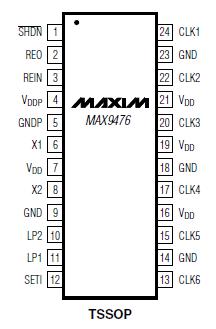

The MAX9476 is available in a 24-pin TSSOP package and operates over the extended operating temperature range of -40°C to +85°C and a single +3V to +3.6V power-supply range. For using lower value external crystals, refer to the MAX9486 data sheet.
