MAX9317B

Features: Guaranteed 1.0GHz Operating Frequency145ps (max) Part-to-Part Skew5ps Output-to-Output Skew330ps Propagation Delay from CLK_ to Q_2.375V to 2.625V Operation (MAX9317/MAX9317A)3.0V to 3.6V Operation (MAX9317B/MAX9317C)ESD Protection: ±2kV (Human Body Model)Internal 50Ω Input Termina...

product image

MAX9317B Picture
See larger image
SeekIC No. : 004412637 Detail

MAX9317B: Features: Guaranteed 1.0GHz Operating Frequency145ps (max) Part-to-Part Skew5ps Output-to-Output Skew330ps Propagation Delay from CLK_ to Q_2.375V to 2.625V Operation (MAX9317/MAX9317A)3.0V to 3.6V ...

MAX9317B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MAX9317B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Guaranteed 1.0GHz Operating Frequency
145ps (max) Part-to-Part Skew
5ps Output-to-Output Skew
330ps Propagation Delay from CLK_ to Q_
2.375V to 2.625V Operation (MAX9317/MAX9317A)
3.0V to 3.6V Operation (MAX9317B/MAX9317C)
ESD Protection: ±2kV (Human Body Model)
Internal 50Ω Input Termination Resistors(MAX9317A/MAX9317C)


Application

-Precision Clock Distribution
-Low-Jitter Data Repeaters
-Data and Clock Drivers and Buffers
-Central-Office Backplane Clock Distribution
-DSLAM Backplanes
-Base Stations
-ATE


Pinout

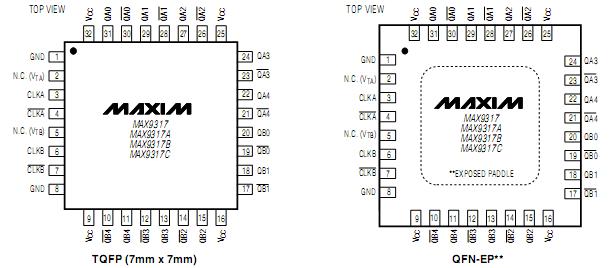

Connection Diagram


Specifications

VCC to GND...........................................................-0.3V to +4.1V
Input Pins to GND.......................................-0.3V to (VCC+ 0.3V)
Differential Input Voltage.............VCC or 3.0V, whichever is less
Continuous Output Current.................................................28mA
Surge Output Current..........................................................50mA
Continuous Power Dissipation (TA= +70°C)
32-Pin, 7mm ×7mm TQFP
(derate 20.7mW/°C above +70°C).................................1.65W
32-Pin 5mm ×5mm QFN
(derate 21.3mW/°C above +70°C)...................................1.7W
Junction-to-Ambient Thermal Resistance in Still Air
32-Pin, 7mm ×7mm TQFP.........................................+48.4°C/W
32-Pin, 5mm ×5mm QFN.............................................+47°C/W
Junction-to-Case Thermal Resistance
32-Pin, 7mm  ×7mm TQFP...........................................+12°C/W
32-Pin, 5mm ×5mm QFN...............................................+2°C/W
Operating Temperature Range........................-40°C to +85°C
Junction Temperature....................................................+150°C
Storage Temperature Range..........................-65°C to +150°C
ESD Protection
Human Body Model (CLK_, CLK</a>_, Q_, Q</a>_, VT_)...±2kV
Soldering Temperature (10s).........................................+300°C


Description

The MAX9317/MAX9317A/MAX9317B/MAX9317C low-skew, dual 1-to-5 differential drivers are designed for clock and data distribution. The differential input is
reproduced at five LVDS outputs with a low output-to-output skew of 5ps.

The MAX9317/MAX9317A are designed for low-voltage operation from a 2.375V to 2.625V power supply for use in 2.5V systems. The MAX9317B/MAX9317C operate from a 3.0V to 3.6V power supply for use in 3.3V sys-tems. The MAX9317A/MAX9317C feature 50Ω input ter-mination resistors to reduce component count.

The MAX9317 family is available in 32-pin 7mm *7mm TQFP and space-saving 5mm  *5mm QFN packages and operate across the extended temperature range of -40°C to +85°C. The MAX9317A is pin compatible with ON Semiconductor's MC100EP210S.
