Features: ` +2.25V to +3.8V Differential HSTL/LVPECL Operation
` -2.25V to -3.8V LVECL Operation
` 30ps (typ) Part-to-Part Skew
` 12ps (typ) Output-to-Output Skew
` 312ps (typ) Propagation Delay
` 300mV Differential Output at 3GHz
` On-Chip Reference for Single-Ended Inputs
` Output Low with Open Input
` Pin Compatible with MC100LVEP111 (MAX9311) and MC100EP111 (MAX9313)
` Offered in Tiny QFN* Package (70% Smaller Footprint than LQFP)Application·Precision Clock Distribution

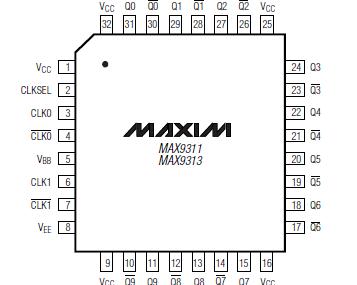

·Low-Jitter Data RepeaterPinout
SpecificationsVCC - VEE............................................................................4.1V
Inputs (CLK_, CLK_, CLKSEL)..............VEE - 0.3V to VCC + 0.3V
CLK_ to CLK_ .................................................................±3.0V
Continuous Output Current .............................................50mA
Surge Output Current.....................................................100mA
VBB Sink/Source Current ............................................±0.65mA
Junction-to-Ambient Thermal Resistance in Still Air
7mm x 7mm LQFP ........................................................+90/W
Junction-to-Ambient Thermal Resistance with
500 LFPM Airflow
7mm x 7mm LQFP ........................................................+60/W
Junction-to-Case Thermal Resistance
7mm x 7mm LQFP ........................................................+12/W
Operating Temperature Range ...........................-40 to +85
Junction Temperature......................................................+150
Storage Temperature Range .............................-65 to +150
ESD Protection
Human Body Model (CLKSEL, CLK_, CLK_,
Q_, Q_, VBB)..........................................................................2kV
Soldering Temperature (10s) ...........................................+300
Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
DescriptionThe MAX9311/MAX9313 are low-skew, 1-to-10 differential drivers designed for clock and data distribution.
These MAX9313 allow selection between two inputs. The selected input is reproduced at 10 differential outputs.
The differential inputs can be adapted to accept singleended inputs by connecting the on-chip VBB supply to one input as a reference voltage.
The MAX9311/MAX9313 feature low part-to-part skew (30ps) and output-to-output skew (12ps), making them ideal for clock and data distribution across a backplane or a board. For interfacing to differential HSTL and LVPECL signals, these devices operate over a +2.25V to +3.8V supply range, allowing high-performance clock or data distribution in systems with a nominal +2.5V or +3.3V supply. For differential LVECL operation, these devices operate from a -2.25V to -3.8V supply.
The MAX9311 features an on-chip VBB reference output of 1.425V below the positive supply voltage. The MAX9313 offers an on-chip VBB reference output of 1.32V below the positive supply voltage.
MAX9313 are offered in space-saving, 32-pin 5mm × 5mm TQFP, 5mm x 5mm QFN, and industry-standard 32-pin 7mm x 7mm LQFP packages.
MAX9313 Data Sheet
